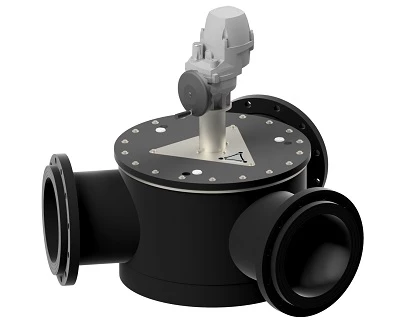

3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGER
The PL-3WAY is a unique 3-way valve designed for fish transport, suitable for use with water and liquids free from solid materials. In addition to a smooth flow path, the valve features a large flow radius, allowing fish to pass gently through the valve. The valve is tight-sealing through to the blanked-off outlet. It is particularly used in aquaculture systems, where corrosion-resistant materials are essential.
Maximum working pressure: 1 bar
The valve is supplied mounted and adjusted with an electric rotary actuator from AUMA for switching between positions. The valve is supplied mounted and adjusted with an electric rotary actuator for switching between 3 valve positions. The valve is supplied mounted and adjusted with an electric rotary actuator for switching between 3 valve positions. The actuator can also be controlled by analogy via the 4-20mA signal for switching between all 3 valve positions.
This variant is supplied with a PP steel flange and SDR26 stubs on all three branches.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | ||
|---|---|---|---|
90 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001300 | ||
110 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001305 | ||
125 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001310 | ||
160 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001315 | ||
200 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001320 | ||
250 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001325 | ||
315 | 3-WAY-VALVE - AISI316 - AUMA PROFOX WITH DIN-FLANGES 75001330 | ||
355 | 3-WAY-VALVE - AISI316 - AUMA SQ + AC WITH DIN-FLANGES 75001335 | ||
400 | 3-WAY-VALVE - AISI316 - AUMA SQ + AC WITH DIN-FLANGES 75001340 |
