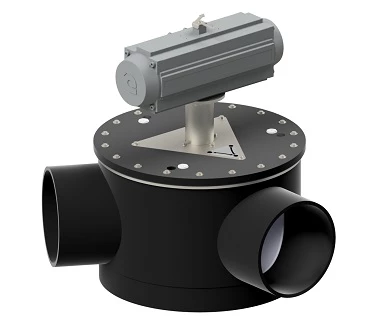

3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR
The PL-3WAY is a unique 3-way valve designed for fish transport, suitable for use with water and liquids free from solid materials. In addition to a smooth flow path, the valve features a large flow radius, allowing fish to pass gently through the valve. The valve is tight-sealing through to the blanked-off outlet. It is particularly used in aquaculture systems, where corrosion-resistant materials are essential. All steel inside the valve is made from DUPLEX.
Maximum working pressure: 1 bar
The valve is supplied mounted and adjusted with a pneumatic rotary actuator for switching between 2 valve positions. The rotary actuator is in high corrosion protection, where exterior bolts and drive shaft are made in AiSi316. The valve casing are made in aluminum and is fully coated.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | ||
|---|---|---|---|
90 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000600 | ||
110 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000605 | ||
125 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000610 | ||
160 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000615 | ||
200 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000620 | ||
250 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000625 | ||
315 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000630 | ||
355 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000635 | ||
400 | 3-WAY-VALVE - DUPLEX - 2 POSITION PNEUMATIC ACTUATOR 75000640 |
