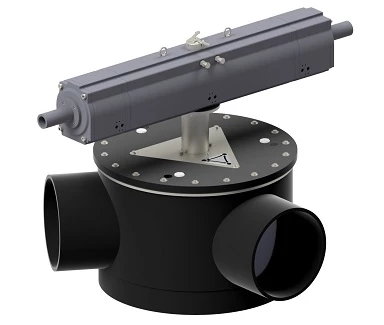

3-WAY-VALVE - DUPLEX - 3 POSITION PNEUMATIC ACTUATOR

The PL-3WAY is a unique 3-way valve designed for fish transport, suitable for use with water and liquids free from solid materials. In addition to a smooth flow path, the valve features a large flow radius, allowing fish to pass gently through the valve. The valve is tight-sealing through to the blanked-off outlet. It is particularly used in aquaculture systems, where corrosion-resistant materials are essential. All steel inside the valve is made from DUPLEX.

The valve is supplied mounted and adjusted with a pneumatic rotary actuator for switching between 3 valve positions. The rotary actuator is in high corrosion protection, where exterior bolts and drive shaft are made in AiSi316. The valve casing is made in aluminum and is fully coated. As an option, a control cabinet with valves for position change -120° - 0° - +120°can be provided. The control cabinet is with 2 x digital input 24V DC or 230 Volt for position change.

Maximum working pressure: 1 bar
