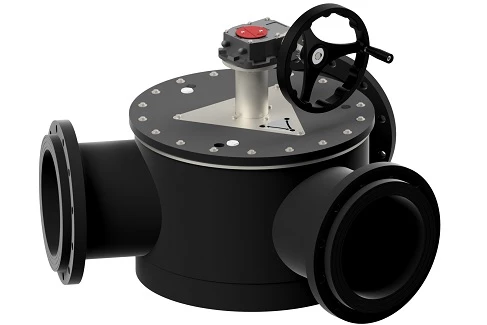

3-WAY-VALVE - DUPLEX - MANUEL WITH DIN-FLANGER

The PL-3WAY is a unique 3-way valve designed for fish transport, suitable for use with water and liquids free from solid materials. In addition to a smooth flow path, the valve features a large flow radius, allowing fish to pass gently through the valve. The valve is tight-sealing through to the blanked-off outlet. It is particularly used in aquaculture systems, where corrosion-resistant materials are essential. All steel inside the valve is made from DUPLEX.

The valve is supplied with manual operation for quick and easy switching between all three valve positions. However, we always recommend supplying the valve with a gearbox for switching between two valve positions. The gear unit is mounted on a strong bracket. The gear is made of cast steel with a protective coating for optimal corrosion resistance. All shafts and external bolts are made of AiSi316 stainless steel.

Maximum working pressure: 1 bar

This variant is supplied with a PP steel flange and SDR26 stubs on all three branches.
