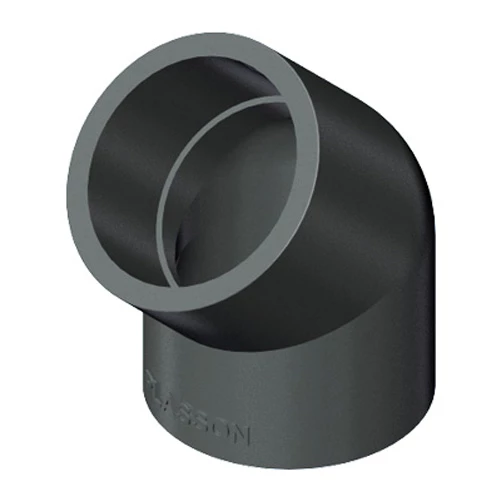

45° PVC ELBOW
PVC fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations.PVC fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028.Color is grey according to standards.PVC fittings is joined using PVC solvent cement and PTFE tape.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Pressure Rating
Has technical drawing
| Dia. | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
10 | PVC ELBOW 10500015-4 | 45 | PVC | ||||
12 | PVC ELBOW 10500016 | 45 | 16 | PVC | 0.0063 | ||
16 | PVC ELBOW 10500017 | 45 | 16 | PVC | 0.01 | ||
20 | PVC ELBOW 10500018 | 45 | 16 | PVC | 0.017 | ||
25 | PVC ELBOW 10500019 | 45 | 16 | PVC | 0.029 | ||
32 | PVC ELBOW 10500020 | 45 | 16 | PVC | 0.032 | ||
40 | PVC ELBOW 10500025 | 45 | 16 | PVC | 0.077 | ||
50 | PVC ELBOW 10500030 | 45 | 16 | PVC | 0.106 | ||
63 | PVC ELBOW 10500035 | 45 | 16 | PVC | 0.193 | ||
75 | PVC ELBOW 10500040 | 45 | 16 | PVC | 0.031 | ||
90 | PVC ELBOW 10500045 | 45 | 16 | PVC | 0.486 | ||
110 | PVC ELBOW 10500050 | 45 | 16 | PVC | 0.85 | ||
125 | PVC ELBOW 10500055 | 45 | 16 | PVC | 0.108 | ||
140 | PVC ELBOW 10500060 | 45 | 16 | PVC | 1.62 | ||
160 | PVC ELBOW 10500065 | 45 | 16 | PVC | 2.18 |
