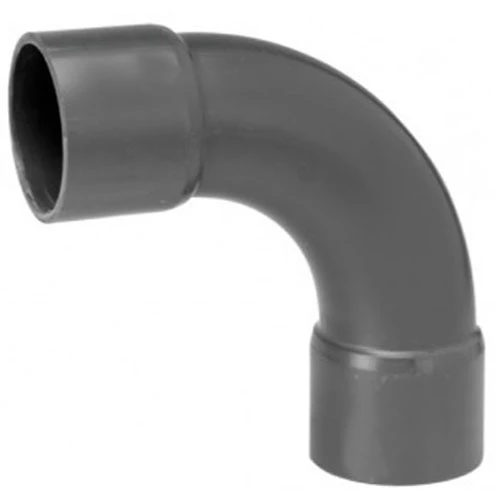

90° PVC BEND
PVC solvent fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent fittings is joined using PVC solvent cement.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Pressure Rating
| Dia. | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | PVC BEND 20 10499998 | 90 | 16 | PVC | 0.022 | ||
25 | PVC BEND 25 10499999 | 90 | 16 | PVC | 0.0381 | ||
32 | PVC BEND 32, PN10 10500000 | 90 | 10 | PVC | 0.044 | ||
40 | PVC BEND 40, PN10 10500001 | 90 | 10 | PVC | 0.08 | ||
50 | PVC BEND 50, PN10 10500002 | 90 | 10 | PVC | 0.14 | ||
50 | PVC BEND 50, PN16 10500013 | 90 | 16 | PVC | 0.21 | ||
63 | PVC. BEND PN16 10499940 | 90 | 16 | PVC | |||
63 | PVC BEND 63 10500003 | 90 | 10 | PVC | 0.284 | ||
75 | PVC. BEND 10499945 | 90 | 16 | PVC | 0.524 | ||
75 | PVC BEND 75 10500004 | 90 | 10 | PVC | 0.39 | ||
90 | PVC. BEND 10499950 | 90 | 16 | PVC | 1.533 | ||
90 | PVC BEND 90 10500005 | 90 | 10 | PVC | 0.72 | ||
110 | PVC. BEND 10499955 | 90 | 16 | PVC | 1.82 | ||
110 | PVC BEND 110 10500006 | 90 | 12.5 | PVC | 1.21 | ||
125 | PVC BEND 125 10500007 | 90 | 12.5 | PVC | 2 |
