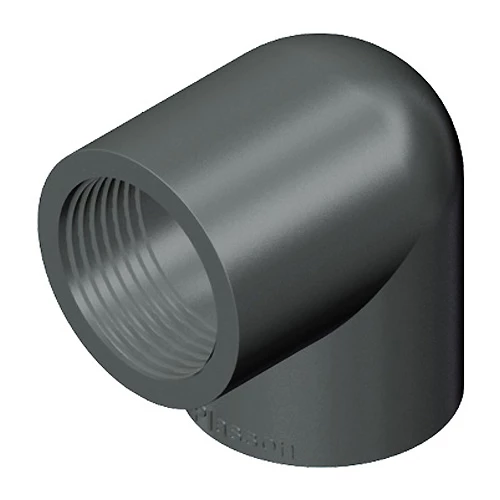

90° PVC MIXED ELBOW
PVC solvent / threaded fittings is suitable for installations up to 16 bar (at 20°C) for transport of fluids for example irrigation, industry and swimmingpool installations. PVC solvent / threaded fittings is produced according to international standards including ISO264, 727, 2536, 3460, KIWA Criteria Std. No. 54 and DIN8063, 19532, UNI EN 1452-3, AFNOR 54-029 and 54-028. Color is grey according to standards. PVC solvent / threaded fittings is joined using PVC solvent cement and PTFE tape.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Angle
Has technical drawing
| Dia. | Dia. (inch) | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
16 | 3/8" | PVC ELBOW 10500138 | 90 | 16 | PVC | 0.017 | ||
20 | 1/2" | PVC ELBOW 10500139 | 90 | 16 | PVC | 0.021 | ||
20 | 1/2" | PVC ELBOW W/REINFORCING RING 10500146 | 90 | 16 | PVC | 0.021 | ||
25 | 3/4" | PVC ELBOW 10500140 | 90 | 16 | PVC | 0.035 | ||
25 | 3/4" | PVC ELBOW 10500144 | 90 | 16 | PVC | 0.0335 | ||
25 | 3/4" | PVC ELBOW W/REINFORCING RING 10500147 | 90 | 16 | PVC | 0.021 | ||
32 | 1" | PVC ELBOW 10500141 | 90 | 16 | PVC | 0.06 | ||
32 | 1" | PVC ELBOW W/REINFORCING RING 10500143 | 90 | 16 | PVC | 0.045 | ||
40 | 1 1/4" | PVC ELBOW 10500142 | 90 | 16 | PVC | 0.091 | ||
40 | 1 1/4" | PVC ELBOW 10500148 | 90 | 16 | PVC | 0.098 | ||
50 | 1 1/2" | PVC ELBOW 10500145 | 45 | 16 | PVC | 0.155 | ||
50 | 1 1/2" | PVC ELBOW 10500149 | 90 | 16 | PVC | 0.202 | ||
63 | 2" | PVC ELBOW 10500150 | 90 | 16 | PVC | 0.265 | ||
75 | 2 1/2" | PVC 2 ELBOW 10500155 | 90 | 16 | PVC | 0.4 | ||
90 | 3" | PVC ELBOW 10500170 | 90 | 16 | PVC | 0.775 |
