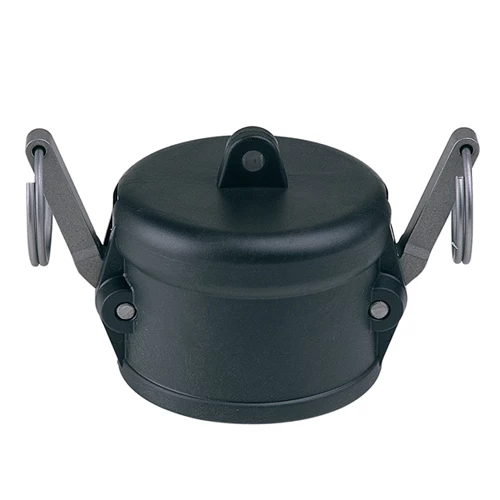

CAMLOCK COUPLING PP FEMALE END CAP - TYPE V
STAINLESS STEEL locking levers for maximum mechanical strength and corrosion resistance (2 locking levers up to 3” models and 3 levers for 4” models) The material used, fibreglass-reinforced polypropylene, ensures excellent mechanical strength and good resistance against chemical agents On request, also available in fibreglass-reinforced Nylon BSP threads Max. working pressure 9 BAR (130 PSI) for the 3/4” to 2” models; max. 5 BAR (75 PSI) for the 3” and 4” models EPDM standard gaskets (Viton® and NBR on request)
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Pressure Rating
| Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
3/4" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150245 | 9 | PP - (Fibreglass reinforced) | 0.076577 | ||
1" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150250 | 9 | PP - (Fibreglass reinforced) | 0.095589 | ||
1 1/4" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150255 | 9 | PP - (Fibreglass reinforced) | 0.178417 | ||
1 1/2" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150260 | 9 | PP - (Fibreglass reinforced) | 0.199244 | ||
2" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150265 | 9 | PP - (Fibreglass reinforced) | 0.249124 | ||
3" | PLUG FOR MALE PP ADAPTOR - TYPE V 14150270 | 5 | PP - (Fibreglass reinforced) | 0.435309 | ||
4" | PLUG FOR MALE PP ADAPTOR V 14150275 | 5 | PP - (Fibreglass reinforced) | 0.697823 |
