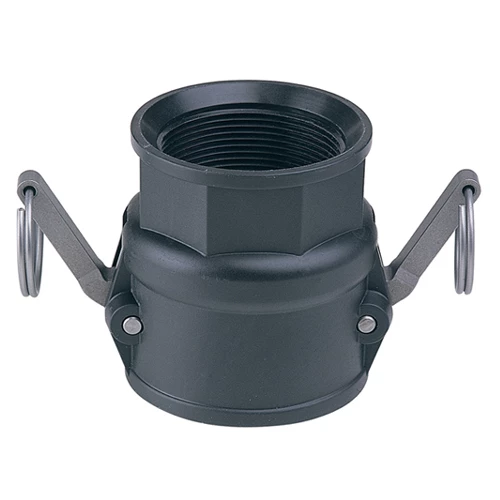

CAMLOCK COUPLING PP FEMALE WITH FEMALE THREAD - TYPE D
STAINLESS STEEL locking levers for maximum mechanical strength and corrosion resistance (2 locking levers up to 3” models and 3 levers for 4” models) The material used, fibreglass-reinforced polypropylene, ensures excellent mechanical strength and good resistance against chemical agents On request, also available in fibreglass-reinforced Nylon BSP threads Max. working pressure 9 BAR (130 PSI) for the 3/4” to 2” models; max. 5 BAR (75 PSI) for the 3” and 4” models EPDM standard gaskets (Viton® and NBR on request)
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Pressure Rating
| Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
1/2" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150203 | 9 | PP - (Fibreglass reinforced) | 0.080953 | ||
3/4" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150204 | 9 | PP - (Fibreglass reinforced) | 0.086186 | ||
1" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150206 | 9 | PP - (Fibreglass reinforced) | 0.105526 | ||
1 1/4" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150208 | 9 | PP - (Fibreglass reinforced) | 0.194457 | ||
1 1/2" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150210 | 9 | PP - (Fibreglass reinforced) | 0.214285 | ||
2" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150215 | 9 | PP - (Fibreglass reinforced) | 0.273624 | ||
3" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150220 | 5 | PP - (Fibreglass reinforced) | 0.481696 | ||
4" | FEMALE PP COUPLER FEMALE THREAD - TYPE D 14150225 | 5 | PP - (Fibreglass reinforced) | 0.748518 |
