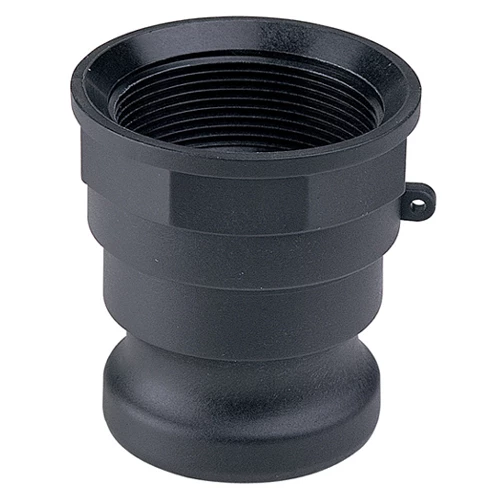

CAMLOCK COUPLING PP MALE WITH FEMALE THREAD - TYPE A
STAINLESS STEEL locking levers for maximum mechanical strength and corrosion resistance (2 locking levers up to 3” models and 3 levers for 4” models) The material used, fibreglass-reinforced polypropylene, ensures excellent mechanical strength and good resistance against chemical agents On request, also available in fibreglass-reinforced Nylon BSP threads Max. working pressure 9 BAR (130 PSI) for the 3/4” to 2” models; max. 5 BAR (75 PSI) for the 3” and 4” models EPDM standard gaskets (Viton® and NBR on request)
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Pressure Rating
| Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
1/2" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150303 | 9 | PP - (Fibreglass reinforced) | 0.0176 | ||
3/4" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150304 | 9 | PP - (Fibreglass reinforced) | 0.023318 | ||
1" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150306 | 9 | PP - (Fibreglass reinforced) | 0.033041 | ||
1 1/4" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150308 | 9 | PP - (Fibreglass reinforced) | 0.0565 | ||
1 1/2" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150310 | 9 | PP - (Fibreglass reinforced) | 0.0712 | ||
2" | MALE PP COUPLER FEMALE THREAD - TYPE A 14150315 | 9 | PP - (Fibreglass reinforced) | 0.110282 | ||
3" | MALE PP COUPLER FEMALE PPE THREAD - TYPE A 14150320 | 5 | PP - (Fibreglass reinforced) | 0.22217 | ||
4" | MALE PP COUPLER FEMALE PPE THREAD - TYPE A 14150325 | 5 | PP - (Fibreglass reinforced) | 0.412913 |
