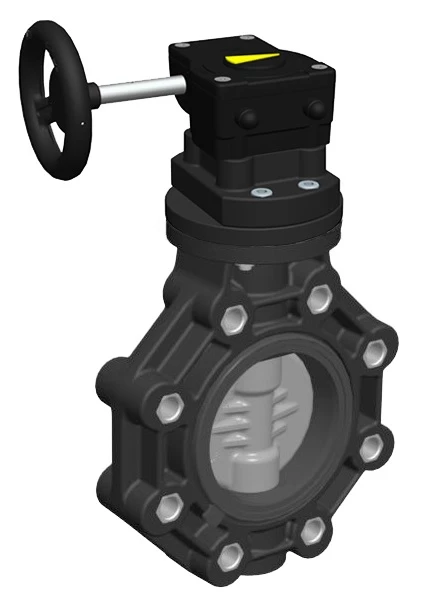

CEPEX ABS (XTM) LUG BUTTERFLY VALVE WITH GEAR, EPDM
Lug-style valves have threaded inserts at both sides of the valve body. This
allows them to be installed into a system using sets of bolts and no nuts. The
valve is installed between flanges using a separate set of bolts for each flange.
This setup permits either side of the piping system to be disconnected without
disturbing the other side.
We strongly recommend to install the valve with flange adaptor and loose flange
in both sides of the valve to keep the technical characteristics of the valve.
INSERTS MATERIAL: AISI 304
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Pressure Rating
| Dia. | Dia. (inch) | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|---|
75 | 2 1/2" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561450 | 10 | |||
90 | 3" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561455 | 10 | |||
110 | 4" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561460 | 10 | |||
125 | 5" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561465 | 10 | |||
160 | 6" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561470 | 10 | |||
225 | 8" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561475 | 10 | 1 | ||
280 | 10" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561480 | 6 | |||
315 | 12" | CEPEX ABS XTM LUG BUTTERFLY VALVE-EPDM-WITH GEARBOX 10561485 | 6 |
