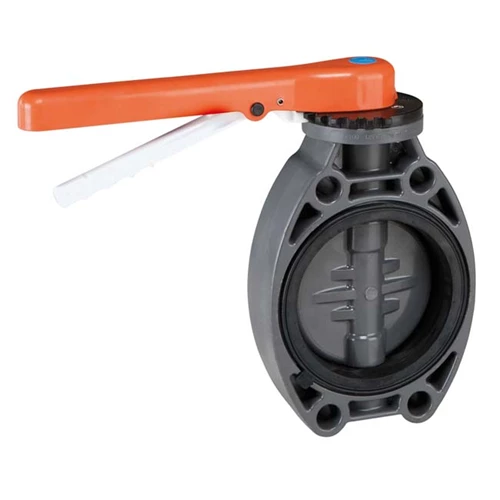

CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM
PVC housing EPDM gasket available with FPM gasket
PN 10 handle
Lug version on requestNeed help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Dia. 2 | Dia. (inch) | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
63 | 75 | 2" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530200 | 10 | PVC | 1.65 | ||
90 | 3" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530205 | 10 | PVC | 1.9 | |||
110 | 4" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530210 | 10 | PVC | 2.6 | |||
125 | 140 | 5" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530215 | 10 | PVC | 3.5 | ||
160 | 6" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530220 | 10 | PVC | 4.55 | |||
200 | 225 | 8" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530225 | 10 | PVC | 7.35 | ||
250 | 10" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530230 | 10 | PVC | 17.6 | |||
315 | 12" | CEPEX PVC (STD) BUTTERVALVEE VALVE STANDARD (32618), EPDM 10530235 | 10 | PVC | 23.1 |
