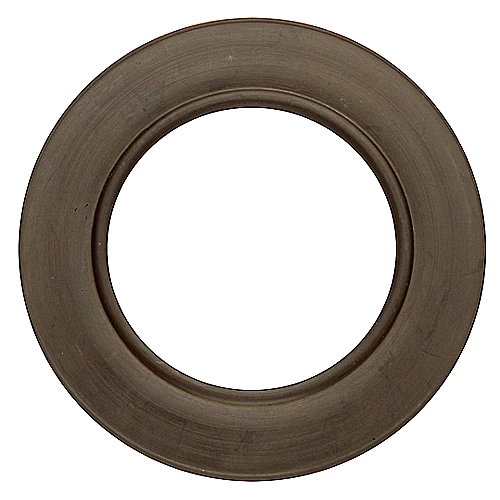

FLAT GASKET STEEL/EPDM
A flange gasket with a steel insert in EPDM is a sealing component that combines the flexibility of EPDM (Ethylene Propylene Diene Monomer) rubber with the strength of an internal steel core. This design enhances the gasket's stability and resistance to high-pressure loads. The steel insert ensures a solid surface pressure and supports the gasket's centering within the flange, reducing the risk of leaks and improving the overall reliability of the system.
Additionally, these gaskets require less surface pressure, making them ideal for use in thin and plastic flanges.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Nominal Diameter | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|
20 | (DN15) FLAT GASKET STEEL/EPDM 22 X 51 X PN10-40 13111900-2 | 15 | EPDM | 0.012 | ||
25 | FLAT GASKET STEEL/EPDM 27 X 61 X 4 MM PN10-40 13111900-1 | 20 | EPDM | 0.027 | ||
32 | (DN25) FLAT GASKET STEEL/EPDM 34 X 71 X PN10-40 13111901 | 25 | EPDM | 0.02 | ||
40 | (DN32) FLAT GASKET STEEL/EPDM 43 X 82 X PN10-40 13111902 | 32 | EPDM | 0.023 | ||
50 | (DN40) FLAT GASKET STEEL/EPDM 49 X 92 X PN10-40 13111904 | 40 | EPDM | 0.031 | ||
63 | (DN50)FLAT GASKET STEEL/EPDM 61 X 107 X PN10-40 13111906 | 50 | EPDM | 0.038 | ||
75 | (DN65) FLAT GASKET STEEL/EPDM 77 X 127 X PN10-40 13111908 | 65 | EPDM | 0.056 | ||
90 | (DN80) FLAT GASKET STEEL/EPDM 89 X 142 X PN10-40 13111910 | 80 | EPDM | 0.065 | ||
100 | (DN1000) FLAT GASKET STEEL/EPDM 1124 X 1018 MM 13111943-1 | 100 | EPDM | 2.356 | ||
110 | (DN100) FLAT GASKET STEEL/EPDM 115 X 162 XM PN10-16 13111912 | 100 | EPDM | 0.074 | ||
140 | (DN125) FLAT GASKET STEEL/EPDM 141 X 192 XM PN10-16 13111916 | 125 | EPDM | 0.102 | ||
160 | (DN150) FLAT GASKET STEEL/EPDM 169 X 218 XM PN10-16 13111918 | 150 | EPDM | 0.109 | ||
200 | 200/(DN200) FLAT GASKET STEEL/EPDM 2273 X PN10-16 13111920 | 200 | EPDM | 0.169 | ||
250 | (DN250) FLAT GASKET STEEL/EPDM 273 X 32PN10-16 13111924 | 250 | EPDM | 0.244 | ||
300 | DN300 (417 X 324 MM) FLAT GSAKET STEEL/EPDM 324 X 417 X PN40 13111927 | 300 | EPDM |
