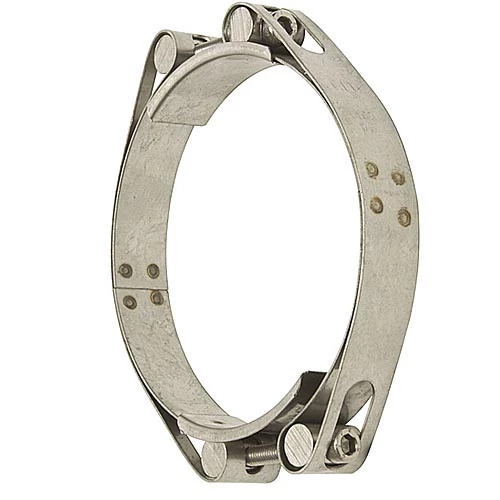

HOSE CLAMP DOUBLE UNBRACO - STAINLESS STEEL
Power-Clamps are designed for heavy-duty industrial hose connections.
The 25-1-2 Power-Clamp is configured with two bolts and features a bridge with raised edges to prevent breakage of the hose material.
The 25-1-2 Power-Clamp is suitable for many applications. Typical applications are found in the following areas:
Agriculture
Drainage systems
Irrigation systems
Sludge suction systems
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Sub material | Weight per pcs | Diameter Span | ||
|---|---|---|---|---|---|---|
50 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (40-50MM) 16200505 | Stainless steel A2 | 0.139 | 40.0 - 50.0 | ||
60 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (50-60MM) 16200510 | Stainless steel A2 | 0.148 | 50.0 - 60.0 | ||
65 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (55-65MM) 16200512 | Stainless steel A2 | 0.154 | 55.0 - 65.0 | ||
70 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (60-70MM) 16200515 | Stainless steel A2 | 0.157 | 60.0 - 70.0 | ||
75 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (65-75MM) 16200520 | Stainless steel A2 | 0.162 | 65.0 - 75.0 | ||
85 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (75-85MM) 16200525 | Stainless steel A2 | 0.175 | 75.0 - 85.0 | ||
90 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (80-90MM) 16200530 | Stainless steel A2 | 0.18 | 80.0 - 90.0 | ||
100 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (90-100MM) 16200535 | Stainless steel A2 | 0.19 | |||
105 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (95-105MM) 16200540 | Stainless steel A2 | 0.195 | 95.0 - 105.0 | ||
110 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (100-110MM) 16200545 | Stainless steel A2 | 0.198 | 100.0 - 110.0 | ||
115 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (105-115MM) 16200547 | Stainless steel A2 | 0.205 | 105.0 - 115.0 | ||
120 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (20MM) 16200550 | Stainless steel A2 | 0.21 | |||
130 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (120-130MM) 16200555 | Stainless steel A2 | 0.221 | 120.0 - 130.0 | ||
140 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (130-140MM) 16200560 | Stainless steel A2 | 0.236 | 130.0 - 140.0 | ||
150 | HOSE CLAMP DOUBLE UNBRACO STAINLESTAINLESS STEEL STEEL (140-150MM) 16200565 | Stainless steel A2 | 0.245 |
