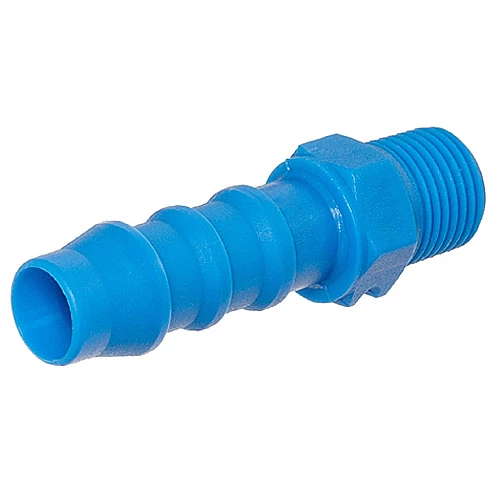

NYLON MALE ADAPTOR

Nylon fitting made of PA Polyamid, used for water, oil and penumatic purposes

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.Dia. (inch)NamePressure RatingSub materialWeight per pcs
4
1/8"
PA6 BARBED ADAPTOR MALE THREAD 13030180
14PA0.001
4
1/4"
PA6 BARBED ADAPTOR MALE THREAD 13030181
14PA0.003
5
1/4"
PA6 BARBED ADAPTOR MALE THREAD 13030185
14PA0.002
6
1/4"
PA6 BARBED ADAPTOR MALE THREAD 13030190
14PA0.0025
6
3/8"
PA6 BARBED ADAPTOR MALE THREAD 13030195
14PA0.0035
8
1/8"
PA6 BARBED ADAPTOR MALE THREAD 13030198
14PA0.00206
8
1/4"
PA6 BARBED ADAPTOR MALE THREAD 13030200
14PA0.0025
8
3/8"
PA6 BARBED ADAPTOR MALE THREAD 13030205
14PA0.004
8
1/2"
PA6 BARBED ADAPTOR MALE THREAD 13030210
14PA0.00646
10
1/4"
PA6 BARBED ADAPTOR MALE THREAD 13030213
14PA0.0035
10
3/8"
PA6 BARBED ADAPTOR MALE THREAD 13030215
14PA0.004
10
1/2"
PA6 BARBED ADAPTOR MALE THREAD 13030220
14PA0.0065
10
3/4"
PA6 BARBED ADAPTOR MALE THREAD 13030221
14PA0.00916
12
1/2"
PA6 BARBED ADAPTOR MALE THREAD 13030222
14PA0.007
19
3/4"
PA6 BARBED ADAPTOR MALE THREAD 13030225
14PA0.011
