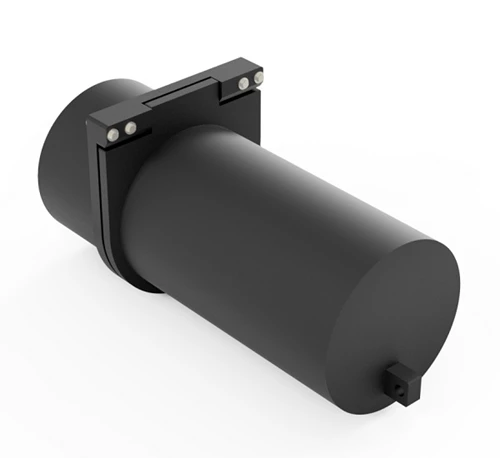

PE FLAP CHECK VALVE WITH FLOAT - AISI316
A PE non-return flap valve is an overflow valve designed for horizontal installation on the side of a tank or chamber. As the water level rises, buoyant force lifts the flap automatically, allowing overflow. When the water level drops, the flap closes on its own, preventing backflow.
The valve is made from durable PE with fittings and a shaft in acid-resistant stainless steel (AISI 316), ensuring long service life and high corrosion resistance. A lifting eye on the front allows the flap to be manually opened or locked, simplifying inspection and maintenance. The valve is suitable for use in stormwater and wastewater systems as well as industrial installations.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Has technical drawing
| Dia. | Name | ||
|---|---|---|---|
110 | PE FLAP CHECK VALVE WITH FLOAT - AISI316 73126155 | ||
110 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126400 | ||
125 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126405 | ||
160 | PE FLAP CHECK VALVE WITH FLOAT - AISI316 73126160 | ||
160 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126410 | ||
200 | PE FLAP CHECK VALVE WITH FLOAT - AISI316 73126200 | ||
200 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126415 | ||
250 | PE FLAP CHECK VALVE WITH FLOAT - AISI316 73126250 | ||
250 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126420 | ||
315 | PE FLAP CHECK VALVE WITH FLOAT - AISI316 73126315 | ||
315 | PE FLAP CHECK VALVE WITH FLOAT AND ADJUSTABLE FLOW - AISI316 73126425 |
