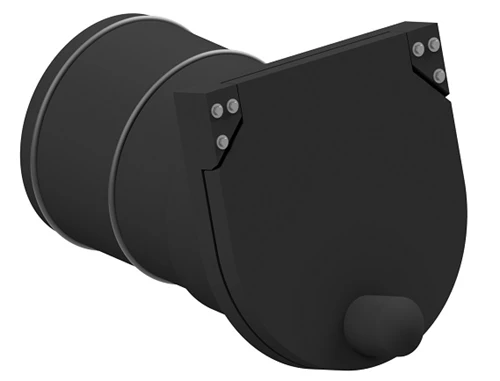

PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR
PL-FLAPVALVE is a unique flap valve, which secures no backflow of water. The flap valve can be used for all types of fluids, where security of no backflow is needed. The flap valve is produced with a unique hinge system, which ensures that the flap on the valve always has an optimal seal to the gasket installed in the valves backplate.
The flap valve can be applied widely within all areas that require a securing element against backflow, such as wastewater, surface water, coastal protection and fish farms.
The flap valve is made with pipes fitted for direct inset into pipes with smooth inner surface, like plastic or concrete pipes. The flap valve is installed with 2 o-ring gaskets for tightening to the pipe’s inner diameter.
The flap valve is manufactured to size according to the dimension of the inside diameter of the pipe into which the check valve is to be inserted.
When ordering, the inside diameter of the pipe into which the valve is to be inserted must be stated (in mm).
Check the documents to see which products are covered by the approvals.
| Dia. | Name | Weight per pcs | ||
|---|---|---|---|---|
110 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027105 | 4 | ||
125 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027110 | 2.7 | ||
160 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027115 | 4 | ||
200 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027120 | 5.9 | ||
250 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027125 | 8 | ||
315 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027130 | 12.5 | ||
355 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027135 | 15.1 | ||
400 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027140 | 18.7 | ||
450 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027145 | 26.1 | ||
500 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027150 | 28.2 | ||
560 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027155 | 51.8 | ||
630 | PL FLAP CHECK VALVE INSERT TYPE - AISI316 - 0,5 BAR (INFORMATION ON INTERNAL DIAMETER IN MM NEEDED) 73027160 | 58.5 |
