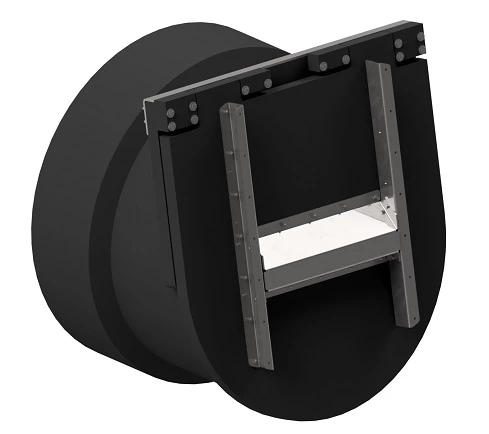

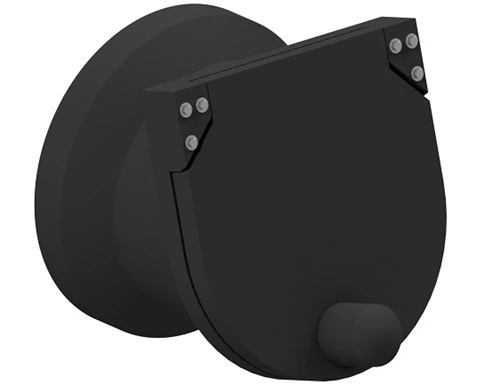

PL FLAP CHECK VALVE WITH FEMALE SOCKET - AISI316 - 0,5 BAR

PL-FLAPVALVE is a unique flap valve, which secures no backflow of water. The flap valve

can be used for all types of fluids, where security of no backflow is needed. The flap valve is

produced with a unique hinge system, which ensures that the flap on the valve always has

an optimal seal to the gasket installed in the valves backplate.



The flap valve can be applied widely within all areas that require a securing element against

backflow, such as wastewater, surface water, coastal protection and fish farms.



This model is made with socket with a EPDM gasket.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.NameWeight per pcs
110
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027005
4
125
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027010
2.7
160
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027015
4
200
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027020
5.9
250
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027025
8
315
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027030
12.5
355
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027035
15.1
400
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027040
18.7
450
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027045
26.1
500
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027050
28.2
560
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027055
51.8
630
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027060
58.5
710
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027065
72.5
800
PL FLAP CHECK VALVE WITH FEMALE SOCKET JOINT - AISI316 - 0,5 BAR 73027070
89
