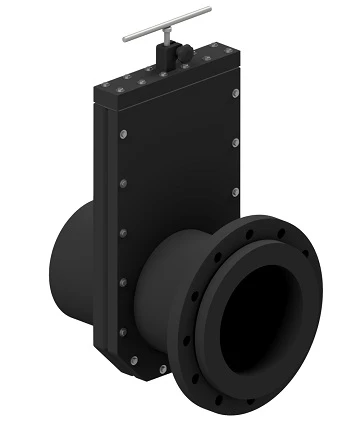

PL-GATEVALVE-P WITH POSITION LOCK AND SINGLE DIN-FLANGE
PL-GATEVALVE-P is a unique knife valve that can be used for water/liquids without solid material. The valve is full flow. This means that the valve has a wide range of applications. The valve is mainly used for fish farming, where corrosion-free materials are required.
This model is leak -free from both directions.
The valve has a position lock. This makes it possible to lock the knife in any given position.
This particular model has a single sided DIN flange for easy connection.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | ||
|---|---|---|---|
110 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71027910 | ||
125 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71027920 | ||
160 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 2 BAR - ENSIDET DIN-FLANGE 71027930 | ||
200 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71027940 | ||
250 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71027950 | ||
315 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71027960 | ||
355 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71027970 | ||
400 | PL-GATEVALVE-P - AISI316 - WITH POSITION LOCK - 1 BAR - ENSIDET DIN-FLANGE 71027980 |
