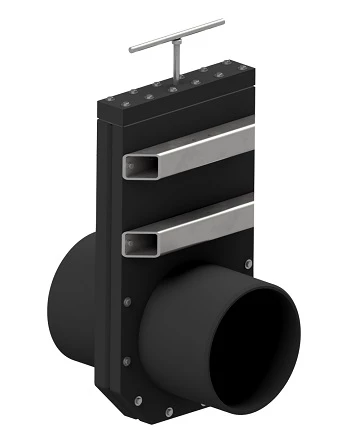

PL-GATEVALVE SLURRY
PL-GATEVALVE-P is a unique spade valve that can be used for water/liquids with solid material. The valve is full flow. This means that the valve has a wide range of applications. The valve is mainly used for waste water, where corrosion-free materials are required.
The valve with cleaning pocket and thus only waterproof from one direction. The cleaning pocket makes the valve suitable for slurry containing solid particles.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Weight per pcs | ||
|---|---|---|---|---|
110 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027205 | 5.5 | ||
125 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027207 | 6.3 | ||
160 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027210 | 8.8 | ||
200 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027220 | 15.4 | ||
250 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027230 | 21 | ||
315 | PL-GATEVALVE-SLURRY - IN:AISI316 OUT:304 - 6 BAR - REINFORCED 71027240 | 35 |
