PL-PENSTOCK-A - AISI316 – ROUND OPENING

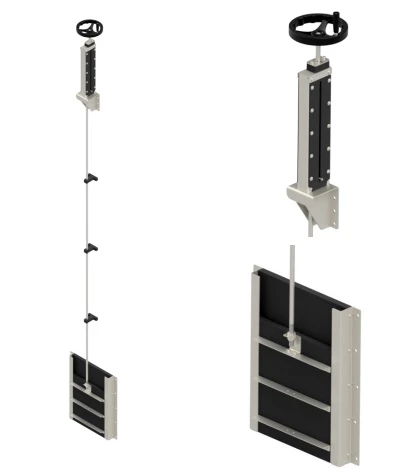

PL-Penstock-A is a unique penstock that can be widely used within fish farms, process water, wastewater and surface water. The penstock is in corrosion-free materials and leak free from both directions. This particular model is the steel is aisi316. The penstock consists of a frame and a penstock plate for shut off and regulation, as well as a spindle console placed above the water level.



The penstock plate and spindle console are connected to a drawbar. The penstock is with non-rising spindle, which makes it easy to manually adjust and position the penstock plate. The penstock comes standard with a gasket for sealing between wall and the penstock frame.



This model comes with a circular opening on the backplate, this opening can be adjusted according to the costumers wish.

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00ordre@plast-line.dk
  • Variants
  • Specifications
Diameter (mm)
Dia.Name
160
PL-PENSTOCK-A - AISI316 76000150
160
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 1 METER (MEASURES???) 76000155
160
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 2 METER (MEASURES???) 76000160
160
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 3 METER (MEASURES???) 76000165
160
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 4 METER (MEASURES???) 76000170
200
PL-PENSTOCK-A - AISI316 76000175
200
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 1 METER (MEASURES???) 76000180
200
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 2 METER (MEASURES???) 76000185
200
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 3 METER (MEASURES???) 76000190
200
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 4 METER (MEASURES???) 76000195
250
PL-PENSTOCK-A - AISI316 76000200
250
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 1 METER (MEASURES???) 76000205
250
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD MAX 2 METER (MEASURES???) 76000210
250
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 3 METER (MEASURES???) 76000215
250
PL-PENSTOCK-A - AISI316 - W/ EXTENSION ROD : WALL MOUNT MAX 4 METER (MEASURES???) 76000220
