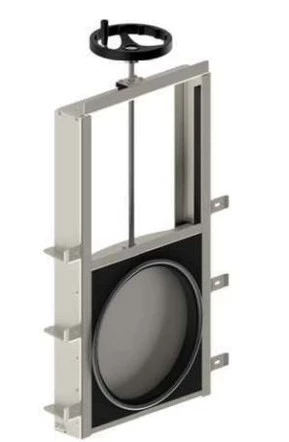

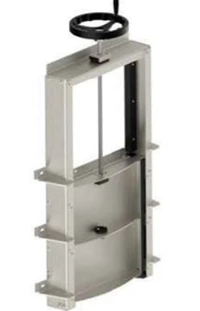

PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL

PL-Penstock-C is a unique penstock that can be widely used within fish farms, process water, wastewater and surface water. The penstock is in corrosion-free materials and leak free from both directions. The penstock is with non-rising spindle, which makes it easy to manually adjust and position the penstock plate. The penstock comes standard with a gasket for sealing between wall and the penstock frame.



Simple and proven design, with many options for accessories. After manufacturing, all steel components are finished with pickling for optimal corrosion resistance. The penstock is fitted with an extra strong spindle nut, which ensures a long life of wear parts in the penstock.



Maximum pressure front: 6 mVs

Maximum pressure back: 6 mVs



Pressure rates can be adjusted with extra reinforcement steel.



This model comes with a circular opening on the backplate, this opening can be adjusted according to the costumers wish.

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00ordre@plast-line.dk
  • Variants
  • Specifications
Diameter (mm)
Dia.Name
160
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002005
200
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002010
250
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002015
315
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002020
355
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002025
400
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002030
450
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002035
500
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002040
560
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002045
630
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002050
710
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002055
800
PL-PENSTOCK-C - AISI316 - W/ HANDWHEEL 76002060
