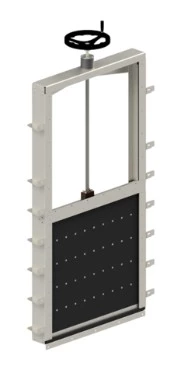

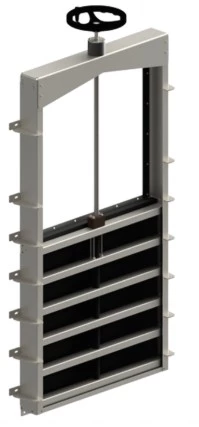

PL-PENSTOCK-D - AISI316 - W/HANDWHEEL

PL-Penstock-D is a unique penstock that can be widely used within fish farms, process water, wastewater and surface water. The penstock is in corrosion-free materials and leak free from both directions. The penstock is with non-rising spindle, which makes it easy to manually adjust and position the penstock plate. The penstock comes standard with a gasket for sealing between wall and the penstock frame.



Simple and proven design, with many options for accessories. After manufacturing, all steel components are finished with pickling for optimal corrosion resistance. The penstock is fitted with an extra strong spindle nut, which ensures a long life of wear parts in the penstock.



Maximum pressure front: 6 mVs

Maximum pressure back: 6 mVs



Pressure rates can be adjusted with extra reinforcement steel.



This model comes with a circular opening on the backplate, this opening can be adjusted according to the costumers wish. This particular penstock is well suited for larger dimensions.

Need help?

At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!

Read more
KKKKKK (1)
Customer service
+45 63 40 41 00ordre@plast-line.dk
  • Variants
  • Specifications
Diameter (mm)
Dia.Dia. 2Name
800
800
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002205
900
900
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002210
1000
1000
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002215
1200
1200
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002220
1400
1400
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002225
1600
1600
PL-PENSTOCK-D - AISI316 - W/HANDWHEEL 76002230
