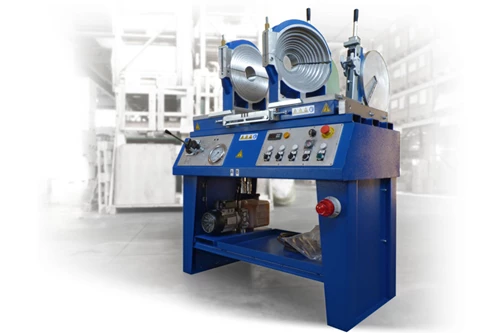

PL315C BUTT WELDING MACHINE
Hydraulic operated butt welding machine suitable for PE,PP,PVDF and other thermoplastic materials pipes and fittings. The pivoting clamps allow the construction of segmented (lobster back) bends in different radius . By means of the adjustable cross slide on the fixed trolley it’s possible to have always the perfect alignment. The electric facing tool has the cross slide adjustable in order to mill always into the pipe’s centre. These machines can be supplied ( on request ) with Tees and Crosses Devices for fabrication of 45° , 60° , 90° Tees. Electronic thermostat on the mirror and connection for the LDU (data logger) with the circuit.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Name | Weight per pcs | ||
|---|---|---|---|
PL315C MM STUB WELDING MACHINE 230V 13259040 | 80 | ||
RIGHT NARROW CLAMP INCL. REDUCTION 90-FOR PL315C WELDING MACHINE 13259041 | |||
LEFT NARROW CLAMP INCL. REDUCTION 90-FOR PL315C WELDING MACHINE 13259042 | |||
STUB DEVICE FOR PL315C WELDING MACHINE (90-315 MM) 13259043 | |||
DEVICE - TEE + CROSS - FOR PL315C WELDING MACHINE INCL. REDUCTION (90-225 MM) 13259045 | |||
DEVICE - TEE + TEE - FOR PL315C WELDING MACHINE INCL. REDUCTION (90-225 MM) 13259046 | |||
PL315C MM STUB WELDING MACHINE 400V 13259040-1 |
