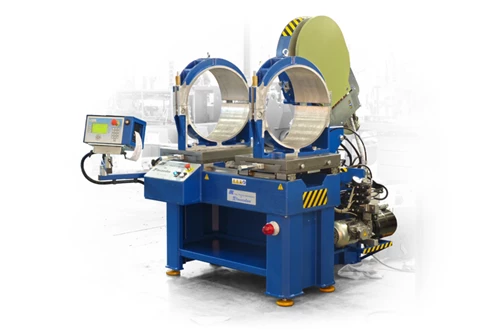

PL500CNC BUTT WELDING MACHINE

CNC operated butt welding machine suitable for PE,PP,PVDF and other thermoplastic materials pipes and fittings. The CNC control provide the following main functions: – Assist the operator during the welding cycle – Check and control the welding parameters during the welding cycle – At the end of welding cycle print the welding report While set up the welding data and positioned the pieces to be welded , the CNC control will carry on the welding cycle The Welding data to be set up are: Material Type , Diameter , Wall Thickness or SDR , Welding Standard ( DVS, ISO , WIS , ISO HP , etc ) The database related to the welding can be transfer to a PC by means of using the Software supplied The pivoting clamps allow the construction of segmented bends in different radius. By means of the adjustable cross slide on the fixed trolley it’s possible to have always the perfect alignment. The electric facing tool as well has the cross slide adjustable in order to mill always into the pipe’s centre. These machines can be supplied ( on request ) with Tees and Crosses Devices for fabrication of 45° , 60° , 90° Tees.
