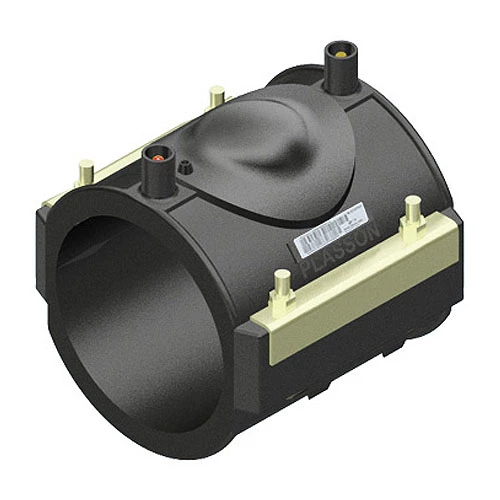

PLASSON ELECTRO FUSION REPAIR SADDLE
The PLASSON electrofusion repair saddle is designed for repairing damage to existing PE pipes in both water and gas installations. It enables a secure and durable repair without the need to replace the entire pipe section.
PLASSON electrofusion fittings are engineered for safe and long-lasting connections in PE piping systems. When used with PLASSON welding machines and the integrated SmartFuse system, they offer a high-quality solution that ensures easy installation with minimal risk of error.
All PLASSON electrofusion fittings are supplied with a label containing both a welding barcode and a traceability barcode, along with information on cooling time. The label also indicates which SDR pipe class the fitting is compatible with.
Please note that item number 13100445 requires special tools for proper installation – contact Plast-Line for advice and guidance.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Dia. 2 | Name | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
63 | PLASSON ELECTROFUSION REPAIR SADDLE 13100432 | 10 | PE100 | 0.38 | |||
75 | PLASSON ELECTROFUSION REPAIR SADDLE 13100433 | 10 | PE100 | 0.41 | |||
90 | PLASSON ELECTROFUSION REPAIR SADDLE 13100434 | 10 | PE100 | 0.5 | |||
110 | PLASSON ELECTROFUSION REPAIR SADDLE 13100435 | 10 | PE100 | 0.56 | |||
125 | PLASSON ELECTROFUSION REPAIR SADDLE 13100436 | 10 | PE100 | 0.62 | |||
140 | PLASSON ELECTROFUSION REPAIR SADDLE 13100437 | 10 | PE100 | 0.66 | |||
160 | PLASSON ELECTROFUSION REPAIR SADDLE 13100438 | 10 | PE100 | 0.72 | |||
180 | PLASSON ELECTROFUSION REPAIR SADDLE 13100439 | 10 | PE100 | 0.76 | |||
250 | 900 | PLASSON ELECTROFUSION REPAIR SADDLE PN10/PN16 - SVEJSBAR PÅ RØR MED MIN. GODSTYKKELSE PÅ 14,7 MM, MAX REP. STR. Ø70 MM 13100445 | 10 | PE100 | 1.5 |
