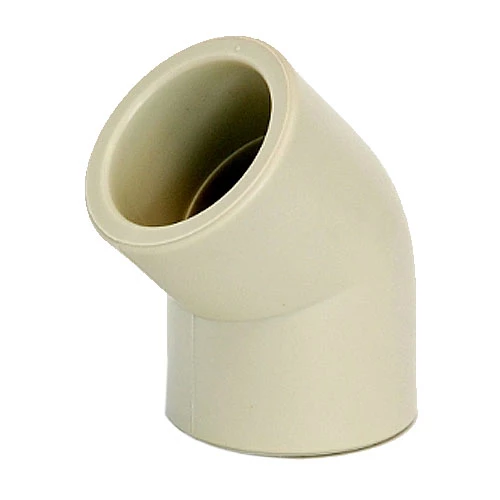

45° PP ELBOW, F/F
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Angle | Pressure Rating | Sub material | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | PP-H ELBOW F/F - RAL 7032 13155300 | 45 | 10 | PP | 0.018 | ||
25 | PP-H ELBOW F/F - RAL 7032 13155305 | 45 | 10 | PP | 0.025 | ||
32 | PP-H ELBOW F/F - RAL 7032 13155310 | 45 | 10 | PP | 0.036 | ||
40 | PP-H ELBOW F/F - RAL 7032 13155315 | 45 | 10 | PP | 0.071 | ||
50 | PP-H ELBOW F/F - RAL 7032 13155320 | 45 | 10 | PP | 0.103 | ||
63 | PP-H ELBOW F/F - RAL 7032 13155325 | 45 | 10 | PP | 0.148 | ||
75 | PP-H ELBOW F/F - RAL 7032 13155330 | 45 | 10 | PP | 0.2 | ||
90 | PP-H ELBOW F/F - RAL 7032 13155335 | 45 | 10 | PP | 0.335 | ||
110 | PP-H ELBOW F/F - RAL 7032 13155340 | 45 | 10 | PP | 0.61 |
