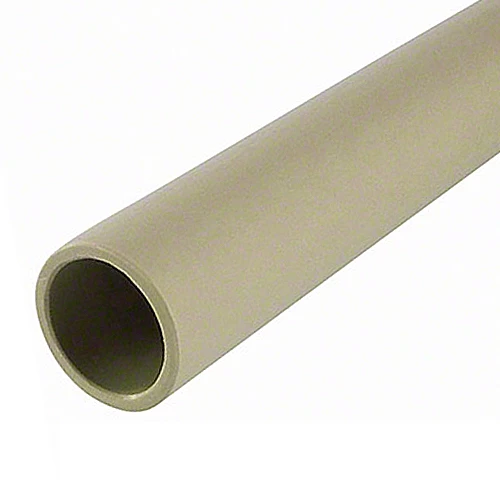

PP-H PRESSURE PIPE, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Length | Weight per m | ||
|---|---|---|---|---|---|---|---|---|
20 | PP-H PRESSURE PIPE - RAL 7032 13150000 | 10 | 11 | 1.9 | 5 | 0.1 | ||
25 | PP-H PRESSURE PIPE - RAL 7032 13150005 | 10 | 11 | 2.3 | 5 | 0.162 | ||
32 | PP-H PRESSURE PIPE - RAL 7032 13150010 | 10 | 11 | 2.9 | 5 | 0.264 | ||
40 | PP-H PRESSURE PIPE - RAL 7032 13150015 | 10 | 11 | 3.7 | 5 | 0.416 | ||
50 | PP-H PRESSURE PIPE - RAL 7032 13150020 | 10 | 11 | 4.6 | 5 | 0.63 | ||
63 | PP-H PRESSURE PIPE - RAL 7032 13150025 | 10 | 11 | 5.8 | 5 | 1.03 | ||
75 | PP-H PRESSURE PIPE - RAL 7032 13150027 | 10 | 11 | 6.8 | 5 | 1.46 | ||
90 | PP-H PRESSURE PIPE - RAL 7032 13150030 | 10 | 11 | 8.2 | 5 | 2.02 | ||
110 | PP-H PRESSURE PIPE - RAL 7032 13150035 | 10 | 11 | 10 | 5 | 3.01 | ||
125 | PP-H PRESSURE PIPE - RAL 7032 13150040 | 10 | 11 | 11.4 | 5 | 3.99 | ||
140 | PP-H PRESSURE PIPE - RAL 7032 13150045 | 10 | 11 | 12.7 | 5 | 4.82 | ||
160 | PP-H PRESSURE PIPE - RAL 7032 13150050 | 10 | 11 | 14.6 | 5 | 6.37 | ||
180 | PP-H PRESSURE PIPE - RAL 7032 13150055 | 10 | 11 | 16.4 | 5 | 8 | ||
200 | PP-H PRESSURE PIPE - RAL 7032 13150060 | 10 | 11 | 18.2 | 5 | 9.95 | ||
225 | PP-H PRESSURE PIPE - RAL 7032 13150065 | 10 | 11 | 20.5 | 5 | 12.8 |
