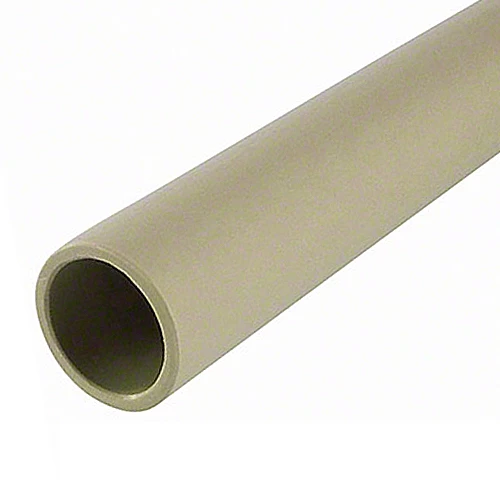

PP-H PRESSURE PIPE, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Length | Weight per m | ||
|---|---|---|---|---|---|---|---|---|
25 | PP-H PRESSURE PIPE - RAL 7032 13150105 | 6 | 17 | 1.8 | 5 | 0.132 | ||
32 | PP-H PRESSURE PIPE - RAL 7032 13150110 | 6 | 17 | 1.8 | 5 | 0.172 | ||
40 | PP-H PRESSURE PIPE - RAL 7032 13150115 | 6 | 17 | 2.3 | 5 | 0.273 | ||
50 | PP-H PRESSURE PIPE - RAL 7032 13150120 | 6 | 17 | 2.9 | 5 | 0.42 | ||
63 | PP-H PRESSURE PIPE - RAL 7032 13150125 | 6 | 17 | 3.6 | 5 | 0.652 | ||
75 | PP-H PRESSURE PIPE - RAL 7032 13150130 | 6 | 17 | 4.3 | 5 | 0.953 | ||
90 | PP-H PRESSURE PIPE - RAL 7032 13150135 | 6 | 17 | 5.1 | 5 | 1.33 | ||
110 | PP-H PRESSURE PIPE - RAL 7032 13150140 | 6 | 17 | 6.3 | 5 | 1.99 | ||
125 | PP-H PRESSURE PIPE - RAL 7032 13150145 | 6 | 17 | 7.1 | 5 | 2.55 | ||
140 | PP-H PRESSURE PIPE - RAL 7032 13150150 | 6 | 17 | 8 | 5 | 3.2 | ||
160 | PP-H PRESSURE PIPE - RAL 7032 13150155 | 6 | 17 | 9.1 | 5 | 4.17 | ||
180 | PP-H PRESSURE PIPE - RAL 7032 13150160 | 6 | 17 | 10.2 | 5 | 5.25 | ||
200 | PP-H PRESSURE PIPE - RAL 7032 13150165 | 6 | 17 | 11.4 | 5 | 6.5 | ||
225 | PP-H PRESSURE PIPE - RAL 7032 13150170 | 6 | 17 | 12.8 | 5 | 8.19 | ||
250 | PP-H PRESSURE PIPE - RAL 7032 13150175 | 6 | 17 | 14.2 | 5 | 10.1 |
