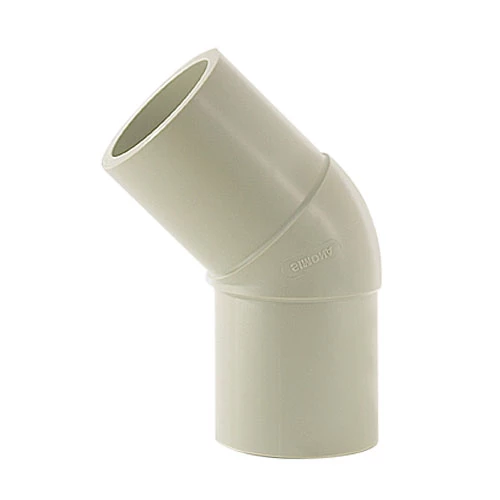

45° PP LONG ELBOW, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Angle | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
50 | LONG PP-H ELBOW - RAL 7032 13157618 | 45 | 6 | 17 | 2.9 | 0.082 | ||
63 | LONG PP-H ELBOW - RAL 7032 13157623 | 45 | 6 | 17 | 3.6 | 0.142 | ||
75 | LONG PP-H ELBOW - RAL 7032 13157628 | 45 | 6 | 17 | 4.3 | 0.196 | ||
90 | LONG PP-H ELBOW - RAL 7032 13157633 | 45 | 6 | 17 | 5.1 | 0.325 | ||
110 | LONG PP-H ELBOW - RAL 7032 13157638 | 45 | 6 | 17 | 6.3 | 0.56 | ||
125 | LONG PP-H ELBOW - RAL 7032 13157643 | 45 | 6 | 17 | 7.1 | 0.79 | ||
140 | LONG PP-H ELBOW - RAL 7032 13157648 | 45 | 6 | 17 | 8 | 1.245 | ||
160 | LONG PP-H ELBOW - RAL 7032 13157653 | 45 | 6 | 17 | 9.1 | 1.85 | ||
180 | LONG PP-H ELBOW - RAL 7032 13157658 | 45 | 6 | 17 | 10.2 | 2.335 | ||
200 | LONG PP-H ELBOW - RAL 7032 13157663 | 45 | 6 | 17 | 11.4 | 3.13 | ||
225 | LONG PP-H ELBOW - RAL 7032 13157668 | 45 | 6 | 17 | 12.8 | 3.97 | ||
250 | LONG PP-H ELBOW - RAL 7032 13157673 | 45 | 6 | 17 | 14.2 | 5.78 | ||
280 | LONG PP-H ELBOW - RAL 7032 13157678 | 45 | 6 | 17 | 15.9 | 7.285 | ||
315 | LONG PP-H ELBOW - RAL 7032 13157683 | 45 | 6 | 17 | 17.9 | 9.85 |
