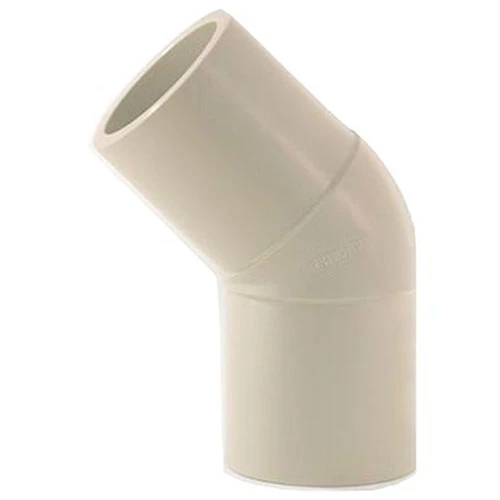

45° PP LONG ELBOW, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket or butt welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Angle | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
20 | LONG PP-H ELBOW - RAL 7032 13157600 | 45 | 10 | 11 | 1.9 | 0.019 | ||
25 | LONG PP-H ELBOW - RAL 7032 13157605 | 45 | 10 | 11 | 2.3 | 0.03 | ||
32 | LONG PP-H ELBOW - RAL 7032 13157610 | 45 | 10 | 11 | 2.9 | 0.056 | ||
40 | LONG PP-H ELBOW - RAL 7032 13157615 | 45 | 10 | 11 | 3.7 | 0.088 | ||
50 | LONG PP-H ELBOW - RAL 7032 13157620 | 45 | 10 | 11 | 4.6 | 0.108 | ||
63 | LONG PP-H ELBOW - RAL 7032 13157625 | 45 | 10 | 11 | 5.8 | 0.203 | ||
75 | LONG PP-H ELBOW - RAL 7032 13157630 | 45 | 10 | 11 | 6.8 | 0.29 | ||
90 | LONG PP-H ELBOW - RAL 7032 13157635 | 45 | 10 | 11 | 8.2 | 0.46 | ||
110 | LONG PP-H ELBOW - RAL 7032 13157640 | 45 | 10 | 11 | 10 | 0.785 | ||
125 | LONG PP-H ELBOW - RAL 7032 13157645 | 45 | 10 | 11 | 11.4 | 1.13 | ||
140 | LONG PP-H ELBOW - RAL 7032 13157650 | 45 | 10 | 11 | 12.7 | 1.685 | ||
160 | LONG PP-H ELBOW - RAL 7032 13157655 | 45 | 10 | 11 | 14.6 | 2.53 | ||
180 | LONG PP-H ELBOW - RAL 7032 13157660 | 45 | 10 | 11 | 16.4 | 3.34 | ||
200 | LONG PP-H ELBOW - RAL 7032 13157665 | 45 | 10 | 11 | 18.2 | 4.54 | ||
225 | LONG PP-H ELBOW - RAL 7032 13157670 | 45 | 10 | 11 | 20.5 | 5.75 |
