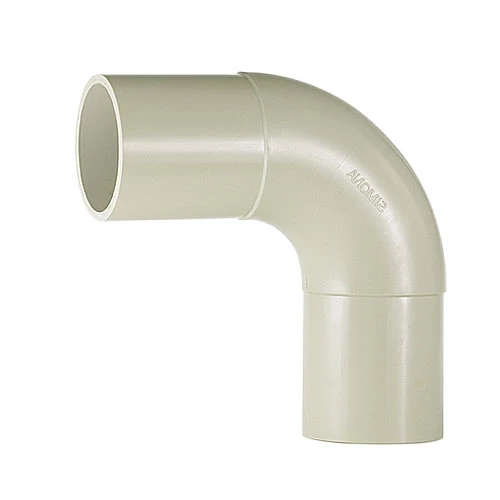

90° PP LONG BEND, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Angle	Pressure Rating	SDR	Material Thickness	Weight per pcs
20	LONG PP-H BEND - RAL 7032 13157700	90	10	11	1.9	0.014
25	LONG PP-H BEND - RAL 7032 13157705	90	10	11	2.3	0.02
32	LONG PP-H BEND - RAL 7032 13157710	90	10	11	2.9	0.042
40	LONG PP-H BEND - RAL 7032 13157715	90	10	11	3.7	0.077
50	LONG PP-H BEND - RAL 7032 13157720	90	10	11	4.6	0.14
63	LONG PP-H BEND - RAL 7032 13157725	90	10	11	5.8	0.28
75	LONG PP-H BEND - RAL 7032 13157730	90	10	11	6.8	0.44
90	LONG PP-H BEND - RAL 7032 13157735	90	10	11	8.2	0.72
110	LONG PP-H BEND - RAL 7032 13157740	90	10	11	10	1.25
125	LONG PP-H BEND - RAL 7032 13157745	90	10	11	11.4	1.765
140	LONG PP-H BEND - RAL 7032 13157750	90	10	11	12.7	2.445
160	LONG PP-H BEND - RAL 7032 13157755	90	10	11	14.6	3.26
180	LONG PP-H BEND - RAL 7032 13157760	90	10	11	16.4	4.86
200	LONG PP-H BEND - RAL 7032 13157765	90	10	11	18.2	6.45
225	LONG PP-H BEND - RAL 7032 13157770	90	10	11	20.5	8.985
