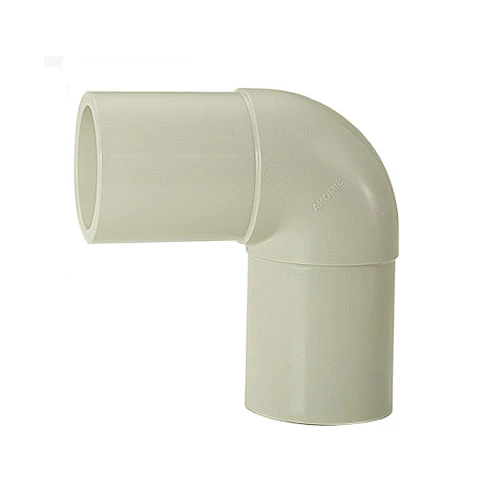

90° PP LONG ELBOW, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Angle	Pressure Rating	SDR	Material Thickness	Weight per pcs
20	LONG PP-H ELBOW - RAL 7032 13157500	90	10	11	1.9	0.021
25	LONG PP-H ELBOW - RAL 7032 13157505	90	10	11	2.3	0.034
32	LONG PP-H ELBOW - RAL 7032 13157510	90	10	11	2.9	0.064
40	LONG PP-H ELBOW - RAL 7032 13157515	90	10	11	3.7	0.099
50	LONG PP-H ELBOW - RAL 7032 13157520	90	10	11	4.6	0.15
63	LONG PP-H ELBOW - RAL 7032 13157525	90	10	11	5.8	0.257
75	LONG PP-H ELBOW - RAL 7032 13157530	90	10	11	6.8	0.405
90	LONG PP-H ELBOW - RAL 7032 13157535	90	10	11	8.2	0.64
110	LONG PP-H ELBOW - RAL 7032 13157540	90	10	11	10	1.04
125	LONG PP-H ELBOW - RAL 7032 13157545	90	10	11	11.4	1.465
140	LONG PP-H ELBOW - RAL 7032 13157550	90	10	11	12.7	2.19
160	LONG PP-H ELBOW - RAL 7032 13157555	90	10	11	14.6	3.2
180	LONG PP-H ELBOW - RAL 7032 13157560	90	10	11	16.4	4.22
200	LONG PP-H ELBOW - RAL 7032 13157565	90	10	11	18.2	5.645
225	LONG PP-H ELBOW - RAL 7032 13157570	90	10	11	20.5	7.61
