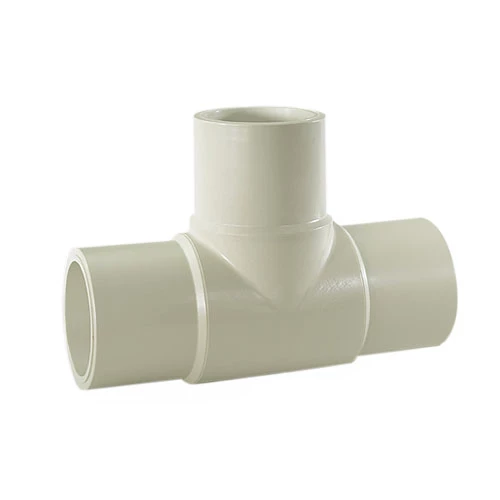

90° PP LONG TEE, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Angle	Pressure Rating	SDR	Material Thickness	Weight per pcs
20	LONG PP-H TEE - RAL 7032 13157800	90	10	11	1.9	0.02
25	LONG PP-H TEE - RAL 7032 13157805	90	10	11	2.3	0.034
32	LONG PP-H TEE - RAL 7032 13157810	90	10	11	2.9	0.06
40	LONG PP-H TEE - RAL 7032 13157815	90	10	11	3.7	0.106
50	LONG PP-H TEE - RAL 7032 13157820	90	10	11	4.6	0.185
63	LONG PP-H TEE - RAL 7032 13157825	90	10	11	5.8	0.337
75	LONG PP-H TEE - RAL 7032 13157830	90	10	11	6.8	0.545
90	LONG PP-H TEE - RAL 7032 13157835	90	10	11	8.2	0.92
110	LONG PP-H TEE - RAL 7032 13157840	90	10	11	10	1.545
125	LONG PP-H TEE - RAL 7032 13157845	90	10	11	11.4	2.21
140	LONG PP-H TEE - RAL 7032 13157850	90	10	11	12.7	2.78
160	LONG PP-H TEE - RAL 7032 13157855	90	10	11		4.11
180	LONG PP-H TEE - RAL 7032 13157860	90	10	11		6.79
200	LONG PP-H TEE - RAL 7032 13157865	90	10	11		7.42
225	LONG PP-H TEE - RAL 7032 13157870	90	10	11	20.5	11.24
