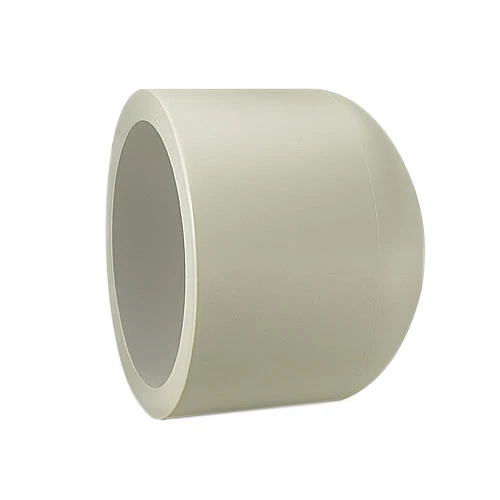

PP LONG END CAP, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Pressure Rating	SDR	Material Thickness	Weight per pcs
20	LONG PP-H END CAP - RAL 7032 13157900	10	11	1.9	0.005
25	LONG PP-H END CAP - RAL 7032 13157905	10	11	2.3	0.006
32	LONG PP-H END CAP - RAL 7032 13157910	10	11	2.9	0.016
40	LONG PP-H END CAP - RAL 7032 13157915	10	11	3.7	0.023
50	LONG PP-H END CAP - RAL 7032 13157920	10	11	4.6	0.048
63	LONG PP-H END CAP - RAL 7032 13157925	10	11	5.8	0.087
75	LONG PP-H END CAP - RAL 7032 13157930	10	11	6.8	0.138
90	LONG PP-H END CAP - RAL 7032 13157935	10	11	8.2	0.222
110	LONG PP-H END CAP - RAL 7032 13157940	10	11	10	0.375
125	LONG PP-H END CAP - RAL 7032 13157945	10	11	11.4	0.52
140	LONG PP-H END CAP - RAL 7032 13157950	10	11	12.7	0.695
160	LONG PP-H END CAP - RAL 7032 13157955	10	11	14.6	1.04
180	LONG PP-H END CAP - RAL 7032 13157960	10	11	16.4	1.375
200	LONG PP-H END CAP - RAL 7032 13157965	10	11	18.2	1.86
225	LONG PP-H END CAP - RAL 7032 13157970	10	11	20.5	2.625
