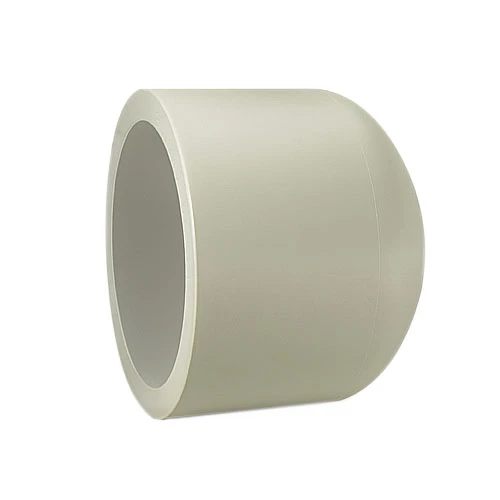

PP LONG END CAP, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Has technical drawing
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
63 | LONG PP-H END CAP - RAL 7032 13157924 | 6 | 17 | 3.6 | 0.06 | ||
75 | LONG PP-H END CAP - RAL 7032 13157929 | 6 | 17 | 4.3 | 0.095 | ||
90 | LONG PP-H END CAP - RAL 7032 13157934 | 6 | 17 | 5.1 | 0.16 | ||
110 | LONG PP-H END CAP - RAL 7032 13157939 | 6 | 17 | 6.3 | 0.26 | ||
125 | LONG PP-H END CAP - RAL 7032 13157944 | 6 | 17 | 7.1 | 0.36 | ||
140 | LONG PP-H END CAP - RAL 7032 13157949 | 6 | 17 | 8 | 0.485 | ||
160 | LONG PP-H END CAP - RAL 7032 13157954 | 6 | 17 | 9.1 | 0.735 | ||
180 | LONG PP-H END CAP - RAL 7032 13157959 | 6 | 17 | 10.2 | 0.99 | ||
200 | LONG PP-H END CAP - RAL 7032 13157964 | 6 | 17 | 11.4 | 1.31 | ||
225 | LONG PP-H END CAP - RAL 7032 13157969 | 6 | 17 | 12.8 | 1.79 |
