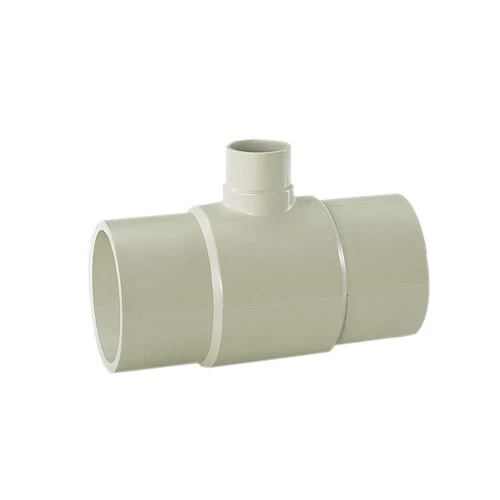

PP LONG REDUCED TEE, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Dia. 2 | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
63 | 50 | LONG PP-R REDUCED TEE - RAL 7032 13158100 | 10 | 11 | 5.8 | 0.3 | ||
75 | 50 | LONG PP-R REDUCED TEE - RAL 7032 13158105 | 10 | 11 | 6.8 | 0.54 | ||
75 | 63 | LONG PP-R REDUCED TEE - RAL 7032 13158110 | 10 | 11 | 6.8 | 0.56 | ||
90 | 63 | LONG PP-R REDUCED TEE - RAL 7032 13158115 | 10 | 11 | 8.2 | 0.79 | ||
90 | 75 | LONG PP-R REDUCED TEE - RAL 7032 13158120 | 10 | 11 | 0.8 | |||
110 | 63 | LONG PP-R REDUCED TEE - RAL 7032 13158125 | 10 | 11 | 10 | 1.345 | ||
110 | 75 | LONG PP-R REDUCED TEE - RAL 7032 13158130 | 10 | 11 | 10 | 1.25 | ||
110 | 90 | LONG PP-R REDUCED TEE - RAL 7032 13158140 | 10 | 11 | 10 | 1.44 | ||
125 | 90 | LONG PP-R REDUCED TEE - RAL 7032 13158145 | 10 | 11 | 11.4 | 1.66 | ||
125 | 110 | LONG PP-R REDUCED TEE - RAL 7032 13158150 | 10 | 11 | 11.4 | 1.86 | ||
160 | 63 | LONG PP-R REDUCED TEE - RAL 7032 13158155 | 10 | 11 | 14.6 | 3.44 | ||
160 | 75 | LONG PP-R REDUCED TEE - RAL 7032 13158160 | 10 | 11 | 14.6 | 2.56 | ||
160 | 90 | LONG PP-R REDUCED TEE - RAL 7032 13158165 | 10 | 11 | 14.6 | 3.685 | ||
160 | 110 | LONG PP-R REDUCED TEE - RAL 7032 13158170 | 10 | 11 | 14.6 | 3.685 | ||
180 | 90 | LONG PP-R REDUCED TEE - RAL 7032 13158175 | 10 | 11 | 4.36 |
