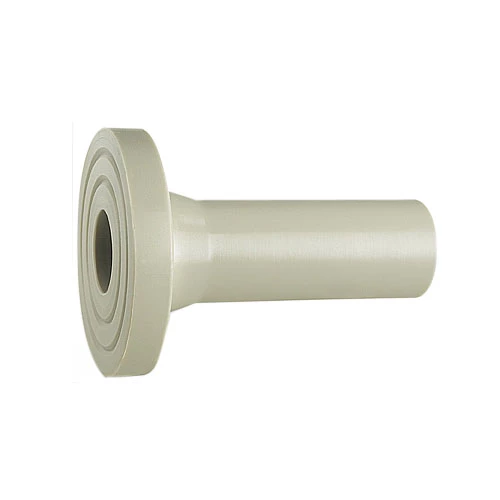

PP LONG STUB FLANGE, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
Has technical drawing
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
25 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13157995 | 10 | 11 | 0.0355 | |||
32 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158000 | 10 | 11 | 2.9 | 0.056 | ||
40 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158005 | 10 | 11 | 3.7 | 0.08 | ||
50 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158010 | 10 | 11 | 4.6 | 0.135 | ||
63 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158015 | 10 | 11 | 5.8 | 0.2 | ||
75 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158020 | 10 | 11 | 6.8 | 0.31 | ||
90 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158025 | 10 | 11 | 8.2 | 0.45 | ||
110 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158030 | 10 | 11 | 10 | 0.7 | ||
140 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158040 | 10 | 11 | ||||
160 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158045 | 10 | 11 | 14.6 | 1.82 | ||
180 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158050 | 10 | 11 | 16.4 | 1.96 | ||
200 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158055 | 10 | 11 | 18.2 | 3.015 | ||
225 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158060 | 10 | 11 | 20.5 | 3.08 | ||
250 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158065 | 10 | 11 | 22.7 | 4.8 | ||
280 | LONG PP-H STUB FLANGE ISO/DIN - RAL 7032 13158070 | 10 | 11 | 25.4 | 5.17 |
