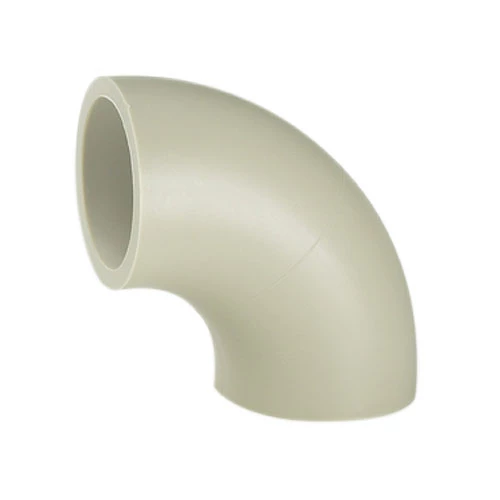

PP PE100 SHORT BEND, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | SHORT PP-H BEND - RAL 7032 13151000 | 10 | 11 | 1.9 | 0.007 | ||
25 | SHORT PP-H BEND - RAL 7032 13151005 | 10 | 11 | 2.3 | 0.015 | ||
32 | SHORT PP-H BEND - RAL 7032 13151010 | 10 | 11 | 2.9 | 0.034 | ||
40 | SHORT PP-H BEND - RAL 7032 13151015 | 10 | 11 | 3.7 | 0.053 | ||
50 | SHORT PP-H BEND - RAL 7032 13151020 | 10 | 11 | 4.6 | 0.093 | ||
63 | SHORT PP-H BEND - RAL 7032 13151025 | 10 | 11 | 5.8 | 0.191 | ||
75 | SHORT PP-H BEND - RAL 7032 13151030 | 10 | 11 | 6.8 | 0.295 | ||
90 | SHORT PP-H BEND - RAL 7032 13151035 | 10 | 11 | 8.2 | 0.493 | ||
110 | SHORT PP-H BEND - RAL 7032 13151040 | 10 | 11 | 10 | 0.895 | ||
125 | SHORT PP-H BEND - RAL 7032 13151045 | 10 | 11 | 11.4 | 0.82 | ||
140 | SHORT PP-H BEND - RAL 7032 13151050 | 10 | 11 | 12.7 | 1.725 | ||
160 | SHORT PP-H BEND - RAL 7032 13151055 | 10 | 11 | 2.51 | |||
180 | SHORT PP-H BEND - RAL 7032 13151060 | 10 | 11 | 16.4 | 2.405 | ||
200 | SHORT PP-H BEND - RAL 7032 13151065 | 10 | 11 | 18.2 | 3.44 | ||
225 | SHORT PP-H BEND - RAL 7032 13151068 | 10 | 11 | 20.5 | 4.844 |
