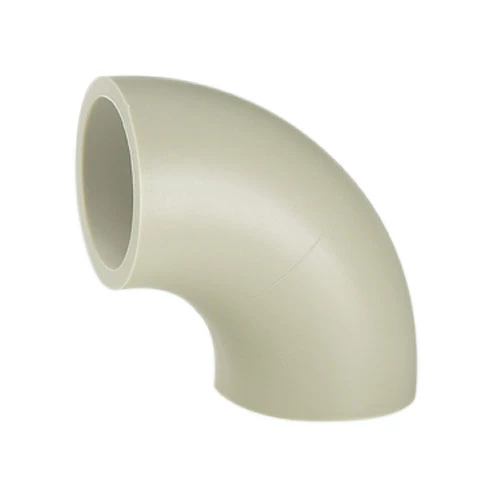

PP PE100 SHORT BEND, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
50 | SHORT PP-H BEND - RAL 7032 13151019 | 6 | 17 | 2.9 | 0.074 | ||
63 | SHORT PP-H BEND - RAL 7032 13151024 | 6 | 17 | 3.6 | 0.142 | ||
75 | SHORT PP-H BEND - RAL 7032 13151029 | 6 | 17 | 4.3 | 0.224 | ||
90 | SHORT PP-H BEND - RAL 7032 13151034 | 6 | 17 | 5.1 | 0.205 | ||
110 | SHORT PP-H BEND - RAL 7032 13151039 | 6 | 17 | 6.3 | 0.681 | ||
125 | SHORT PP-H BEND - RAL 7032 13151044 | 6 | 17 | 7.1 | 0.96 | ||
140 | SHORT PP-H BEND - RAL 7032 13151049 | 6 | 17 | 8 | 1.35 | ||
160 | SHORT PP-H BEND - RAL 7032 13151054 | 6 | 17 | 9.1 | 1.865 | ||
180 | SHORT PP-H BEND - RAL 7032 13151059 | 6 | 17 | 10.2 | 1.607 | ||
200 | SHORT PP-H BEND - RAL 7032 13151064 | 6 | 17 | 11.4 | 2.27 | ||
225 | SHORT PP-H BEND - RAL 7032 13151067 | 6 | 17 | 12.8 | 3.14 | ||
250 | SHORT PP-H BEND - RAL 7032 13151069 | 6 | 17 | 14.2 | 4.235 | ||
280 | SHORT PP-H BEND - RAL 7032 13151074 | 6 | 17 | 15.9 | 5.66 | ||
315 | SHORT PP-H BEND - RAL 7032 13151079 | 6 | 17 | 17.9 | 8.635 | ||
355 | SHORT PP-H BEND - RAL 7032 13151084 | 6 | 17 | 20.1 | 12.76 |
