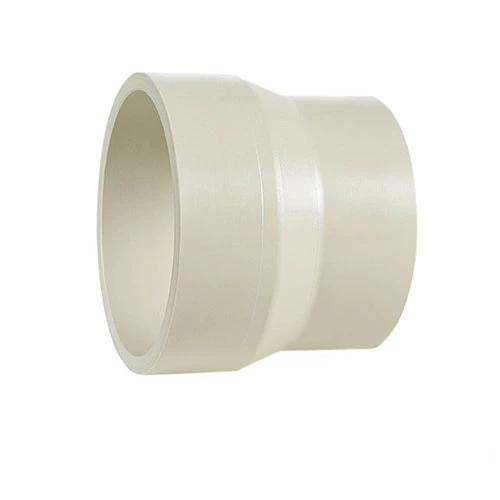

PP PE100 SHORT REDUCER, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Dia. 2	Name	Pressure Rating	SDR	Material Thickness	Weight per pcs
25	20	SHORT PP-H REDUCER - RAL 7032 13151600	6	11	2.3	0.004
32	20	SHORT PP-H REDUCER - RAL 7032 13151604	6	11	2.9	0.013
32	25	SHORT PP-H REDUCER - RAL 7032 13151605	6	11	2.9	0.015
40	32	SHORT PP-H REDUCER - RAL 7032 13151610	6	11	3.7	0.022
50	25	SHORT PP-H REDUCER - RAL 7032 13151615	6	11	4.6	0.037
50	32	SHORT PP-H REDUCER - RAL 7032 13151620	6	11	4.6	0.043
50	40	SHORT PP-H REDUCER - RAL 7032 13151625	6	11	4.6	0.047
63	32	SHORT PP-H REDUCER - RAL 7032 13151630	6	11	5.8	0.064
63	40	SHORT PP-H REDUCER - RAL 7032 13151635	6	11	5.8	0.07
63	50	SHORT PP-H REDUCER - RAL 7032 13151645	6	11	5.8	0.079
75	63	SHORT PP-H REDUCER - RAL 7032 13151660	6	11	6.8	0.112
90	50	SHORT PP-H REDUCER - RAL 7032 13151680	6	11	8.2	0.145
90	63	SHORT PP-H REDUCER - RAL 7032 13151686	6	11		0.162
90	75	SHORT PP-H REDUCER - RAL 7032 13151690	6	11	8.2	0.174
110	50	SHORT PP-H REDUCER - RAL 7032 13151710	6	11	10	0.205
