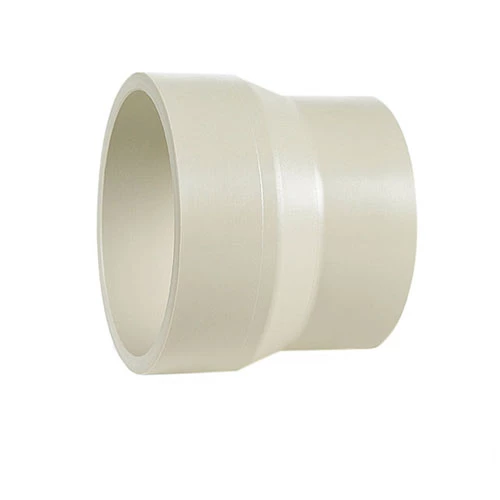

PP PE100 SHORT REDUCER, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Dia. 2 | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|---|
50 | 32 | SHORT PP-H REDUCER - RAL 7032 13151619 | 10 | 17 | 2.9 | 0.018 | ||
50 | 40 | SHORT PP-H REDUCER - RAL 7032 13151624 | 10 | 17 | 2.9 | 0.031 | ||
63 | 50 | SHORT PP-H REDUCER - RAL 7032 13151640 | 10 | 17 | 2.9 | 0.055 | ||
75 | 63 | SHORT PP-H REDUCER - RAL 7032 13151659 | 10 | 17 | 4.3 | 0.081 | ||
90 | 50 | SHORT PP-H REDUCER - RAL 7032 13151679 | 10 | 17 | 5.1 | 0.08 | ||
90 | 63 | SHORT PP-H REDUCER - RAL 7032 13151685 | 10 | 17 | 5.1 | 0.11 | ||
90 | 75 | SHORT PP-H REDUCER - RAL 7032 13151689 | 10 | 17 | 5.1 | 0.12 | ||
110 | 50 | SHORT PP-H REDUCER - RAL 7032 13151709 | 10 | 17 | 6.3 | 0.139 | ||
110 | 63 | SHORT PP-H REDUCER - RAL 7032 13151714 | 10 | 17 | 6.3 | 0.17 | ||
110 | 75 | SHORT PP-H REDUCER - RAL 7032 13151719 | 10 | 17 | 6.3 | 0.17 | ||
110 | 90 | SHORT PP-H REDUCER - RAL 7032 13151724 | 10 | 17 | 6.3 | 0.192 | ||
125 | 90 | SHORT PP-H REDUCER - RAL 7032 13151754 | 10 | 17 | 7.1 | 0.271 | ||
125 | 110 | SHORT PP-H REDUCER - RAL 7032 13151759 | 10 | 17 | 7.1 | 0.25 | ||
160 | 90 | SHORT PP-H REDUCER - RAL 7032 13151799 | 10 | 17 | 9.1 | 0.495 | ||
160 | 110 | SHORT PP-H REDUCER - RAL 7032 13151804 | 10 | 17 | 9.1 | 0.5 |
