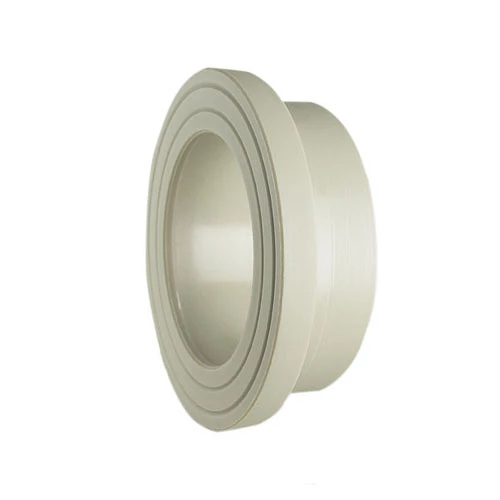

PP PE100 SHORT STUB FLANGE, SDR11
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | SHORT PP-H STUB FLANGE - RAL 7032 13151200 | 10 | 11 | 1.9 | 0.018 | ||
25 | SHORT PP-H STUB FLANGE - RAL 7032 13151205 | 10 | 11 | 2.3 | 0.033 | ||
32 | SHORT PP-H STUB FLANGE - RAL 7032 13151210 | 10 | 11 | 2.9 | 0.044 | ||
40 | SHORT PP-H STUB FLANGE - RAL 7032 13151215 | 10 | 11 | 3.7 | 0.065 | ||
50 | SHORT PP-H STUB FLANGE - RAL 7032 13151220 | 10 | 11 | 4.6 | 0.085 | ||
63 | SHORT PP-H STUB FLANGE - RAL 7032 13151225 | 10 | 11 | 5.8 | 0.14 | ||
75 | SHORT PP-H STUB FLANGE - RAL 7032 13151230 | 10 | 11 | 6.8 | 0.2 | ||
90 | SHORT PP-H STUB FLANGE - RAL 7032 13151235 | 10 | 11 | 8.2 | 0.315 | ||
110 | SHORT PP-H STUB FLANGE - RAL 7032 13151240 | 10 | 11 | 10 | 0.44 | ||
125 | SHORT PP-H STUB FLANGE - RAL 7032 13151245 | 10 | 11 | 11.4 | 0.54 | ||
140 | SHORT PP-H STUB FLANGE - RAL 7032 13151250 | 10 | 11 | 12.7 | 0.715 | ||
160 | SHORT PP-H STUB FLANGE - RAL 7032 13151255 | 10 | 11 | 14.6 | 1.12 | ||
180 | SHORT PP-H STUB FLANGE - RAL 7032 13151260 | 10 | 11 | 16.4 | 0.92 | ||
200 | SHORT PP-H STUB FLANGE - RAL 7032 13151265 | 10 | 11 | 18.2 | 2.16 | ||
225 | SHORT PP-H STUB FLANGE - RAL 7032 13151270 | 10 | 11 | 20.5 | 2.165 |
