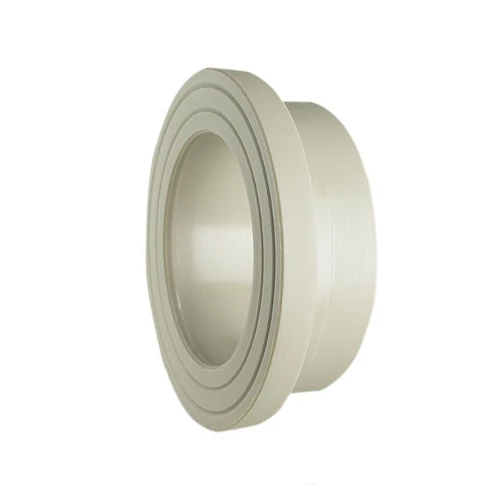

PP PE100 SHORT STUB FLANGE, SDR17
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Check the documents to see which products are covered by the approvals.
Diameter (mm)
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
50 | SHORT PP-H STUB FLANGE - RAL 7032 13151219 | 6 | 17 | 2.9 | 0.076 | ||
63 | SHORT PP-H STUB FLANGE - RAL 7032 13151224 | 6 | 17 | 3.6 | 0.122 | ||
75 | SHORT PP-H STUB FLANGE - RAL 7032 13151229 | 6 | 17 | 4.3 | 0.18 | ||
90 | SHORT PP-H STUB FLANGE - RAL 7032 13151234 | 6 | 17 | 5.1 | 0.27 | ||
110 | SHORT PP-H STUB FLANGE - RAL 7032 13151239 | 6 | 17 | 6.3 | 0.377 | ||
125 | SHORT PP-H STUB FLANGE - RAL 7032 13151244 | 6 | 17 | 7.1 | 0.38 | ||
140 | SHORT PP-H STUB FLANGE - RAL 7032 13151249 | 6 | 17 | 8 | 0.51 | ||
160 | SHORT PP-H STUB FLANGE - RAL 7032 13151254 | 6 | 17 | 9.1 | 0.745 | ||
180 | SHORT PP-H STUB FLANGE - RAL 7032 13151259 | 6 | 17 | 10.2 | 0.65 | ||
200 | SHORT PP-H STUB FLANGE - RAL 7032 13151264 | 6 | 17 | 11.4 | 1.756 | ||
225 | SHORT PP-H STUB FLANGE - RAL 7032 13151269 | 6 | 17 | 12.8 | 1.46 | ||
250 | SHORT PP-H STUB FLANGE - RAL 7032 13151274 | 6 | 17 | 14.2 | 2.17 | ||
280 | SHORT PP-H STUB FLANGE - RAL 7032 13151279 | 6 | 17 | 15.9 | 1.975 | ||
315 | SHORT PP-H STUB FLANGE - RAL 7032 13151284 | 6 | 17 | 17.9 | 3.6 | ||
355 | SHORT PP-H STUB FLANGE - RAL 7032 13151289 | 6 | 17 | 20.1 | 5.4 |
