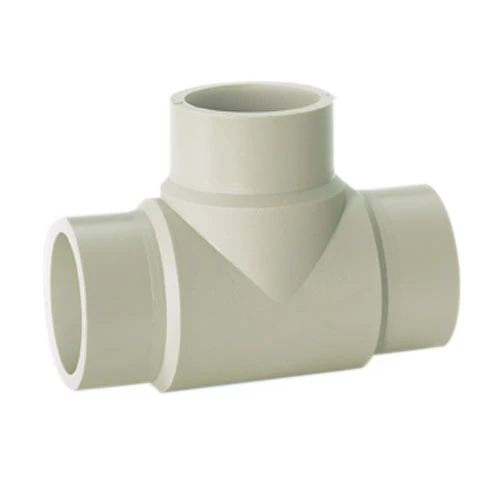

PP PE100 SHORT TEE, SDR11

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Pressure Rating	SDR	Material Thickness	Weight per pcs
20	SHORT PP-H TEE - RAL 7032 13151400	10	11	1.9	0.021
25	SHORT PP-H TEE - RAL 7032 13151405	10	11	2.3	0.03
32	SHORT PP-H TEE - RAL 7032 13151410	10	11	2.9	0.044
40	SHORT PP-H TEE - RAL 7032 13151415	10	11	3.7	0.065
50	SHORT PP-H TEE - RAL 7032 13151420	10	11	4.6	0.111
63	SHORT PP-H TEE - RAL 7032 13151425	10	11	5.8	0.235
75	SHORT PP-H TEE - RAL 7032 13151430	10	11	6.8	0.36
90	SHORT PP-H TEE - RAL 7032 13151435	10	11	8.2	0.68
110	SHORT PP-H TEE - RAL 7032 13151440	10	11	10	1.23
125	SHORT PP-H TEE - RAL 7032 13151445	10	11	11.4	1.6
140	SHORT PP-H TEE - RAL 7032 13151450	10	11	12.7	2.48
160	SHORT PP-H TEE - RAL 7032 13151455	10	11	14.6	3.25
180	SHORT PP-H TEE - RAL 7032 13151460	10	11	16.4	5.475
200	SHORT PP-H TEE - RAL 7032 13151465	10	11	18.2	6.81
225	SHORT PP-H TEE - RAL 7032 13151470	10	11	20.5	8.84
