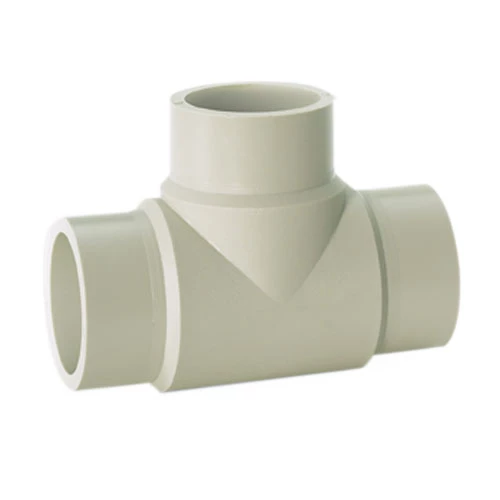

PP PE100 SHORT TEE, SDR17

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Dia.	Name	Pressure Rating	SDR	Material Thickness	Weight per pcs
50	SHORT PP-H TEE - RAL 7032 13151419	6	17	2.9	0.084
63	SHORT PP-H TEE - RAL 7032 13151424	6	17	3.6	0.172
75	SHORT PP-H TEE - RAL 7032 13151429	6	17	4.3	0.28
90	SHORT PP-H TEE - RAL 7032 13151434	6	17	5.1	0.54
110	SHORT PP-H TEE - RAL 7032 13151439	6	17	6.3	0.925
125	SHORT PP-H TEE - RAL 7032 13151444	6	17	7.1	1.133
140	SHORT PP-H TEE - RAL 7032 13151449	6	17	8	1.765
160	SHORT PP-H TEE - RAL 7032 13151454	6	17		2.34
180	SHORT PP-H TEE - RAL 7032 13151459	6	17	10.2	4
200	SHORT PP-H TEE - RAL 7032 13151464	6	17	11.4	5.06
225	SHORT PP-H TEE - RAL 7032 13151469	6	17		5.06
250	SHORT PP-H TEE - RAL 7032 13151474	6	17	14.2	7.41
280	SHORT PP-H TEE - RAL 7032 13151479	6	17	15.9	10.68
315	SHORT PP-H TEE - RAL 7032 13151484	6	17	17.9	14.105
355	SHORT PP-H TEE - RAL 7032 13151489	6	17	20.1	21.9
