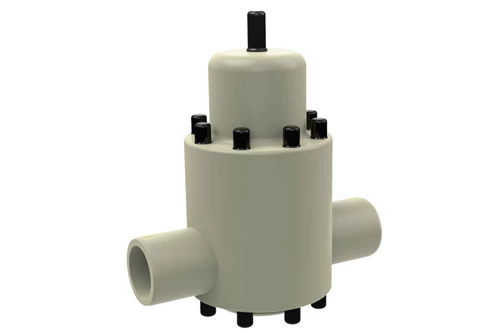

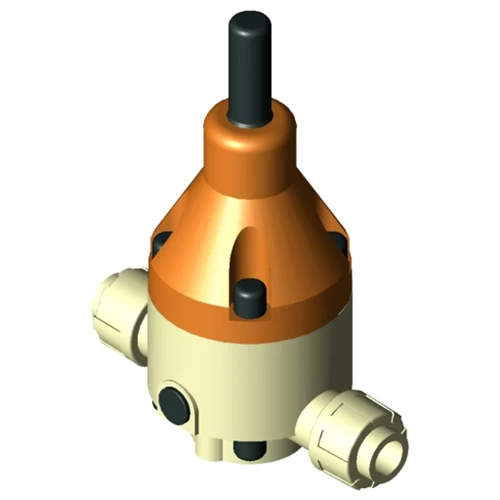

PP PRESSURE REDUCING VALVEL
PP Pressure Reduction Valve The pressure reducing valve is with unions for socket-mandrel welding Pressure relief valve controlled by the medium. The valve closes at a defined inlet pressure and is used to reduce the primary pressure and for regulated, constant operating pressure. As a result, the system parts are downstream of the bracket securely protected against overpressure. Can be delivered with EPDM or FPM gasket, membrane is in PTFE. Pressure setting range 1 to 9 bar Control valve for reliable reduction of system pressure to constant operating pressure Constant, low vibration control behavior High reproducibility of the set pressure Possibility of pressure setting at any time, even during operation
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
16 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537105 | 10 | 0.62 | ||
20 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537110 | 10 | 0.67 | ||
25 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537115 | 10 | 1.44 | ||
32 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537120 | 10 | 1.51 | ||
40 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537125 | 10 | 3.66 | ||
50 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537130 | 10 | 3.67 | ||
63 | PP PRESSURE REDUCING VALVE DMV 755 BV, 10537135 | 10 | 3.9 | ||
75 | PP PRESSURE REDUCING VALVE DMV 750 BV, 10537140 | 10 | 11.8 | ||
90 | PP PRESSURE REDUCING VALVE DMV 750 BV, 10537145 | 10 | 22.5 |
