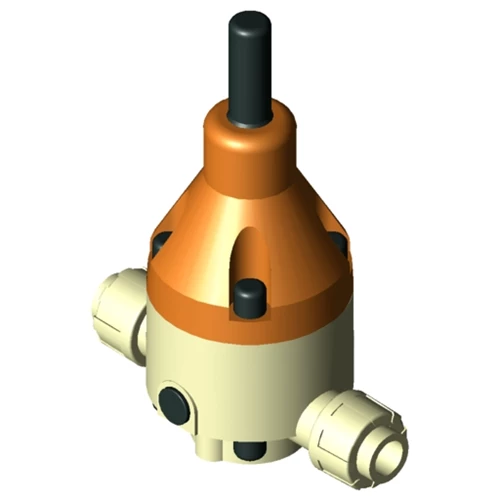

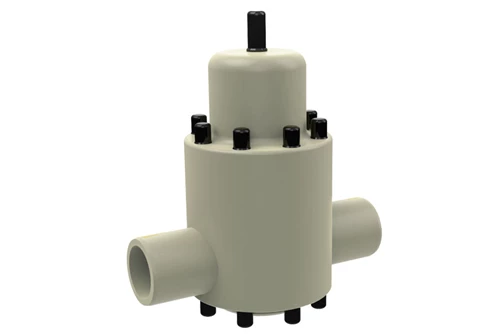

PP PRESSURE RELIEF VALVE
PVC Pressure relief valve The pressure holding valve is with unions for internal gluing Can be delivered with EPDM or FPM gasket, membrane is in PTFE. Pressure setting range 0.3 to 10 bar The pressure holding valve is controlled by the medium. it is used to keep the preset operating pressure constant on the secondary side. The valve can also be used as a safety valve to prevent pressure shocks. In rest position 100% non-suppressed back pressure, therefore suitable for use in measuring points or injection points Thermoplastic pressure relief valve with patented piston control for constant working pressure even at back pressure in the system. Easy pressure setting possible at any time even during operation.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
| Dia. | Name | Pressure Rating | Weight per pcs | ||
|---|---|---|---|---|---|
16 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536905 | 10 | 0.62 | ||
20 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536910 | 10 | 0.58 | ||
25 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536915 | 10 | 1.38 | ||
32 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536920 | 10 | 1.4 | ||
40 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536925 | 10 | 3.44 | ||
50 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536930 | 10 | 3.42 | ||
63 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536935 | 10 | 3.63 | ||
75 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536940 | 10 | 6.15 | ||
75 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536945 | 10 | 6.15 | ||
90 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536950 | 10 | 8.25 | ||
90 | PP PRESSURE RELIEF VALVE DHV 712-R BV, 10536955 | 10 | 8.25 | ||
110 | PP PRESSURE RELIEF VALVE DHV 712-R BV, PN 6 10536960 | 6 | 15.52 | ||
110 | PP PRESSURE RELIEF VALVE DHV 712-R BV, PN 6 10536965 | 6 | 15.52 |
