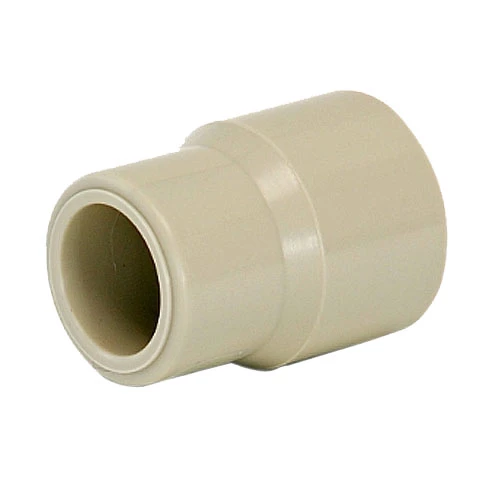

PP REDUCER, M/F

Polypropylene is a weldable thermoplastic material with a wide range of applications.

High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.

The material structure in Polypropylene also provides good welding properties and low thermal conductivity.

The polypropylene system can be used at temperatures up to 80° C

Assembled with electric socket welding.

Check the documents to see which products are covered by the approvals.

Diameter (mm)
Dia.Dia. 2NamePressure RatingWeight per pcs
25
20
PP-H REDUCER MALE/FEMALE - RAL 7032 13155500
100.01
32
20
PP-H REDUCER MALE/FEMALE - RAL 7032 13155505
100.017
32
25
PP-H REDUCER MALE/FEMALE - RAL 7032 13155510
100.017
40
25
PP-H REDUCER MALE/FEMALE - RAL 7032 13155515
100.0225
40
32
PP-H REDUCER MALE/FEMALE - RAL 7032 13155520
100.03
50
32
PP-H REDUCER MALE/FEMALE - RAL 7032 13155525
100.035
50
40
PP-H REDUCER MALE/FEMALE - RAL 7032 13155530
100.051
63
32
PP-H REDUCER MALE/FEMALE - RAL 7032 13155535
100.057
63
40
PP-H REDUCER MALE/FEMALE - RAL 7032 13155540
100.07
63
50
PP-H REDUCER MALE/FEMALE - RAL 7032 13155545
100.086
75
63
PP-H REDUCER MALE/FEMALE - RAL 7032 13155550
100.106
90
63
PP-H REDUCER MALE/FEMALE - RAL 7032 13155555
100.171
90
75
PP-H REDUCER MALE/FEMALE - RAL 7032 13155560
100.15
110
90
PP-H REDUCER MALE/FEMALE - RAL 7032 13155565
100.26
