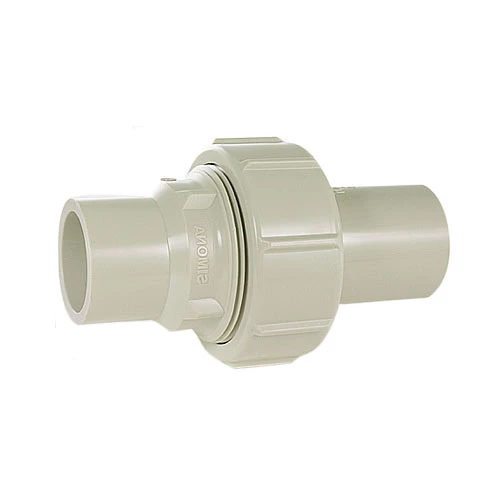

PP SHORT UNION
Polypropylene is a weldable thermoplastic material with a wide range of applications.
High resistance to stress fracture, pressure, wear, corrosion and temperature are some of the properties the Polypropylene system offers.
The material structure in Polypropylene also provides good welding properties and low thermal conductivity.
The polypropylene system can be used at temperatures up to 80° C
Assembled with electric socket welding.
Need help?
At Plast-Line we are always ready to help! Contact us by phone at +45 63404100 or by email at ordre@plast-line.dk with questions about our products. Your satisfaction is our priority!
Customer service
Diameter (mm)
Has technical drawing
| Dia. | Name | Pressure Rating | SDR | Material Thickness | Weight per pcs | ||
|---|---|---|---|---|---|---|---|
20 | SHORT PP-H UNION, EPDM - RAL 7032 13158300 | 10 | 11 | 1.9 | 0.055 | ||
25 | SHORT PP-H UNION, EPDM - RAL 7032 13158302 | 10 | 11 | 2.3 | 0.082 | ||
32 | SHORT PP-H UNION, EPDM - RAL 7032 13158304 | 10 | 11 | 2.9 | 0.114 | ||
40 | SHORT PP-H UNION, EPDM - RAL 7032 13158306 | 10 | 11 | 3.7 | 0.19 | ||
50 | SHORT PP-H UNION, EPDM - RAL 7032 13158308 | 10 | 11 | 4.6 | 0.26 | ||
63 | SHORT PP-H UNION, EPDM - RAL 7032 13158310 | 10 | 11 | 5.8 | 0.43 |
